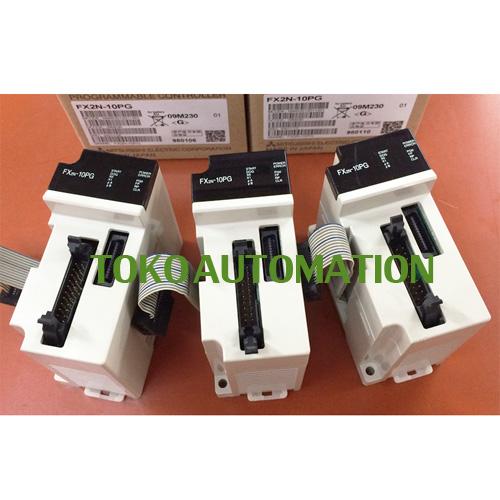

PLC FX2N-10PG Fx2n10pg Automation Industry Plc Module PC15

PLC FX2N-10PG Fx2n10pg Automation Industry Plc Module PC15 Feature: Power supply: 5V DC: Supplied from PLC +24V (for pulse output): 24V DC 10%, 40mA or less Power supply Supply from external power supply or PLC service power supply +5V (for internal control): 5V DC, 80mA Power supply through expansion cable from PLC Number of I/O points occupied:8 input or output points of PLC for each FX2N-10PG Number of control axes:One axis (Max. 8 independent axes for one PLC) Command speed: Operations are enabled at pulse speed of 1Hz to 1MHz Command unit can be selected among Hz, cm/min, 10 deg/min and inch/min. Setting pulse As pulse converted value, 2,147,483,648 to +2,147,483,647 Absolute position specification or relative travel specification can be selected. Command unit can be selected among pulse, um, mdeg and 104 inch. Pulse output format Forward (FP) and reverse (RP) pulse or pulse (FP) with direction (RP) can be selected. Line driver output External I/O Photocoupler insulation and LED operation indicator at all points. Control input 3 points (START/DOG) 24V DC, 7mA (PG0) 524V DC, 20mA or less Interrupt input 2 points (X0/X1) 24V DC, 7mA 2-phase pulse input 1 point (A/B) line drive input Output 3 points (FR/RP) line driver 20mA or less (CLR) 524V DC, 20mA or less Communication with PLC Data communication with FX2N-PLC is performed using FROM/TO instructions
