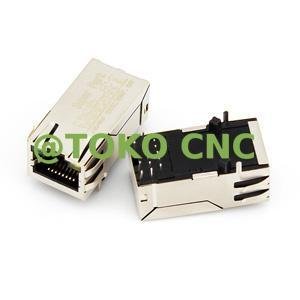

Serial Port TTL UART to Ethernet Module Bidirectional Transmission AN70

Serial Port TTL UART to Ethernet Module Bidirectional Transmission AN70

Description:
The module is the high-performance and industrial version of Super PortIt is an embedded serial networking module,whose function is to realize bidirectional transparent transmission between TTL and Ethernet.The amazing part of K3 lies in its Ethernet port integration designYou can apply K3 to your products to realize networking communication.User can directly process data interaction through network and device to realize remote data acquisition, remote control and management.

Specification:
System Information
– Processor: ARM
– Flash: 32K byte

Ethernet
– Port Number: 1
– Interface Standard: 8 pin RJ45
– Rate: 10/100 MbpsMDI/MDIX,auto switch between cross and direct connection
– Protection: 2KV electromagnetism isolation
– Network Protocol: IPTCPUDPDHCPDNSHTTPARPICMPWeb socketHttpd client
– Buffer: Max. 16k bytes buffer

Serial
– Port Number: 1
– Interface Standard: TTL: pin type 3.3V
– Data Bits: 5678
– Stop Bit: 11.52
– Check Bit: NoneEvenOddSpaceMark
– Baud Rate: TTL:600 bps ~ 1024K bps
– Flow Control:None
– Buffer: send and receive 800 byte bytes respectively
– RS-485 Pull-up and Pull-Down Resistor: null,reserved 485 send-receive control pin

Software
– Virtual SerialUSR-VCOM: Windows 2000 or higher32 bit/64 bit
– Configuration: built-in webpage,computer set-up software,serial command

Basic Parameter
– Size: 33.02 x 19.01 x 19.15 (mm) (including clips)
– Operating Temp.:-40 ~ 85C(industry)
– Storage Temp.: -40 ~ 85C5 ~ 95% RH (no condensation)
– Input Voltage: DC 3.3
– Working Current: 120mA115~125@ 3.3V
– Power: 1W

Package included:
– 1* Serial Port TTL UART to Ethernet Modul Bidirectional Transmission AN70
