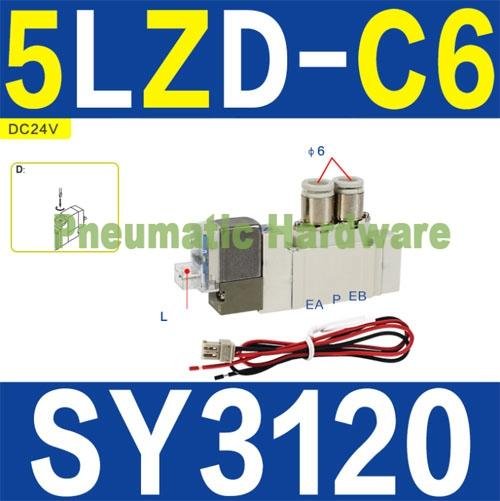

5 Port DC24V Solenoid valve SMC SY3120-5LZD-C6 SY3120 – 5LZD – C6 KD80

5 Port DC24V Solenoid valve SMC SY3120-5LZD-C6 SY3120 – 5LZD – C6 KD80
Description:Solenoid-Operated Air Control Valve – Body Ported, 5 Port, 2 Position, Single SolenoidFeature:Fluid: airOperating pressure range: (internal pilot) 0.1 – 0.7MPa(external pilot) -100kPa to 0.7MPa(external pilot, pilot pressure range) 0.25 – 0.7MPaEffective area mm 2 (Cv): body ported 4.14 (0.23);base mounted 5.4 (0.3)Coil rated voltage: 3, 5, 6, 12, 24VDC;100, 110, 200, 220VACResponse time (0.5MPa) w/o indicator light &surge voltage suppressor: 15ms or lessAmbient & fluid temperature: 50°CSPEK:Number of Ports 5Piping Type Body PortedNumber of Positions 2Number of Solenoids SingleSolenoid Supply Voltage 24 V dcSolenoid Electrical Entry L PlugFlow Coefficient (Cv) / Flow Factor (Kv) 0.17 (A/B to EA/EB) Cv, 0.19 (P to A/B) CvManual Operation Type Locking (Slotted)Operating Temperature Range 14 to 122 °FMaximum Operating Pressure 101 psiSeal Material RubberOperating Medium AirFlow Direction 4-Way
