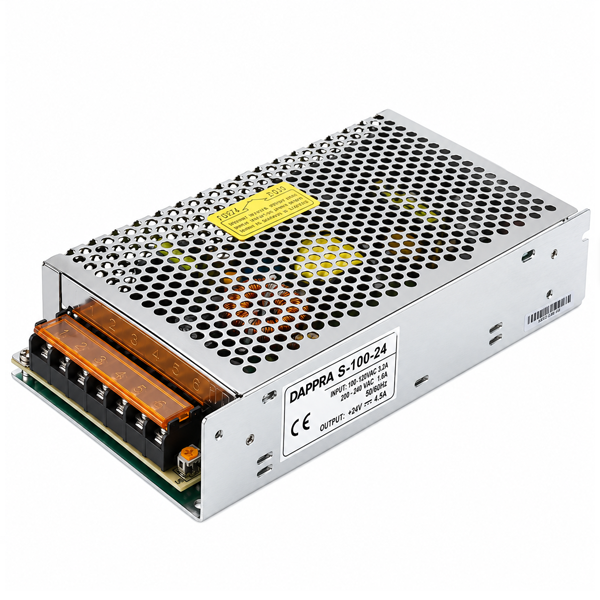

S-100-24 100W 24V DC AC-DC Single Output Enclosed Switching Power Supply
Rp170,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 21 items sold in last 3 jam
69 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA S-100-24 (SKU: PM26) is a 108W single output conventional enclosed switching power supply with 24V DC / 4.5A output. Selectable 85–132 VAC / 180–264 VAC input by switch, 84% typical efficiency, enclosed metal chassis, fanless natural convection cooling, 199 × 98 × 38 mm — ideal for general industrial and commercial applications.
Share:
Overview
S-100-24 (PM26) Overview
The DAPPRA S-100-24 (internal code PM26) is a 108W single-output enclosed switching power supply delivering 24V DC at 4.5A. It is the 100W-class member of the S Series conventional enclosed platform, offering more than twice the output current of the S-50-24 while retaining the same fanless enclosed chassis concept.
The S-100-24 uses selectable AC input: 85–132VAC or 180–264VAC via an external selector switch, or 255–370VDC. Efficiency is 84% typical. Free air convection cooling is used without a fan. The output voltage can be trimmed via the front-panel +V ADJ potentiometer.
The enclosed metal chassis measures 199 × 98 × 38 mm and weighs approximately 0.6 kg. Protection includes short circuit and overload protection (115–150% shutdown, restart to recover). The S-100-24 is suited to 24V loads that exceed the 2.1A capability of the S-50-24 but do not require the fan-cooled 240W/320W models — such as larger relay banks, multi-sensor circuits, small motor loads and general 24V industrial equipment.
Key Features
S-100-24 Key Features
A 108W 24V enclosed power supply with selectable AC input, fanless cooling and higher output current.
- 108W Output · 24V / 4.5A24V DC at 4.5A (0–4.5A), 108W — more than twice the current of the S-50-24.
- Selectable AC Input by Switch85–132VAC / 180–264VAC selected by external switch, or 255–370VDC.
- 84% Typical EfficiencyHigher efficiency than the S-50-24, reducing heat inside the cabinet.
- Free Air Convection CoolingNo fan — quiet operation, no fan maintenance, no fan-induced dust ingress.
- Enclosed Metal Chassis with Vents199 × 98 × 38 mm chassis with perforated ventilation.
- Overload Protection 115–150%Shutdown and restart to recover after fault removal.
- Short Circuit ProtectionProtected output.
- Multiple Output TerminalsTwo −V pins and two +V pins to distribute current across the terminal block.
- -10°C to +60°C Operating RangeWith derating above +50°C.
- 1-Year WarrantyStandard S Series warranty.
Specifications
S-100-24 (PM26) Specifications
Output
| Model | S-100-24 (PM26) |
| DC Voltage | 24V |
| Rated Current | 4.5A |
| Current Range | 0–4.5A |
| Rated Power | 108W |
| Voltage Adjustment | Approx. 21.6–26.4V |
| Voltage Tolerance | ±1.0% |
| Ripple & Noise (max.) | 150mVp-p |
Protection
| Overload | 115–150% rated output, shutdown, restart to recover |
| Short Circuit | Protected |
Input
| Voltage | 85–132VAC / 180–264VAC (selectable by switch) · 255–370VDC |
| Frequency | 47–63Hz |
| AC Current (typ.) | 2.4A @ 115VAC · 1.2A @ 230VAC |
| Inrush Current (max.) | 18A @ 115VAC · 36A @ 230VAC (cold start) |
| Leakage Current | <3.5mA @ 240VAC |
| Efficiency (typ.) | 84% |
Switching Frequency
| Fixed Switching Frequency | 25 kHz |
Environment
| Working Temperature | -10 ~ +60°C (derating above +50°C) |
| Storage Temperature | -20 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Vibration | 10–500Hz, 2G, 10min/cycle, 60min each axis |
Safety & EMC
| Safety Standards | Design refer to UL1012 |
| Withstand Voltage | I/P–O/P: 1.5kVAC · I/P–FG: 1.5kVAC · O/P–FG: 0.5kVAC |
| Isolation Resistance | 100MΩ / 500VDC |
| EMC Emission | Design refer to EN55022 Class A / FCC Part15 J Conduction Class B |
Mechanical
| Dimensions (L×W×H) | 199 × 98 × 38 mm |
| Weight | Approx. 0.6 kg |
| Housing | Enclosed metal chassis with vents |
| Cooling | Free air convection (fanless) |
| Warranty | 1 Year |
Terminal Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | FG (must connect to PE) |
| 4, 5 | DC OUTPUT −V |
| 6, 7 | DC OUTPUT +V |
Notes
24V / 4.5A / 108W. Selectable AC input by switch — verify the switch position before applying power. 7-pin terminal: AC/L, AC/N, FG, −V (2 pins), +V (2 pins). Fanless, 199 × 98 × 38 mm. Derating above +50°C. 1-year warranty.
Dimensions
S-100-24 Dimensions
Enclosed metal chassis with perforated ventilation. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Length (L) | 199 mm |
| Width (W) | 98 mm |
| Height (H) | 38 mm |
| Weight | Approx. 0.6 kg |
| Housing | Enclosed metal chassis with vents |
Clearances & Mounting
| Top / Bottom | 40 mm / 20 mm |
| Left / Right | 5 mm / 5 mm |
| Adjacent Heat Source | Keep at least 100 mm clearance |
| Mounting | Chassis base mounting holes |
| Cooling | Free air convection (no fan) |
Installation
S-100-24 Installation
The S-100-24 uses an enclosed chassis design for standalone mounting inside industrial equipment.
01 / 06
Chassis Mounting
Mount the unit on a flat metal surface using the chassis base mounting holes. Secure the unit to prevent vibration and movement.
02 / 06
Ventilation Clearance
Allow at least 5 mm left/right, 40 mm above and 20 mm below. Do not block the perforated ventilation openings.
03 / 06
Input Voltage Selector
Set the 115V/230V selector switch to match the actual mains voltage before applying power. Wrong setting can damage the unit.
04 / 06
FG to PE Required
The FG terminal (Pin 3) must be connected to PE (Protective Earth) for safety and EMC performance.
05 / 06
Temperature & Derating
-10 to +60°C. Derate above +50°C according to the output load derating curve.
06 / 06
Indoor Use Only
Install in a dry, well-ventilated location. Do not install near water or in high-moisture environments.
Wiring
S-100-24 Wiring & Terminal
7-pin screw terminal block. Both −V pins and both +V pins should be connected to distribute output current.
Terminal Block — 7 Pins
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | FG (must connect to PE) |
| 4, 5 | DC OUTPUT −V |
| 6, 7 | DC OUTPUT +V |
Wiring Specification
| Screw Torque | 5–6 kgf-cm (4.4–5.2 Lb-in) |
| Wire Type | Stranded copper only, 80°C minimum |
| Recommended Wire (4.5A) | 16 AWG (1.0 mm²) or larger |
| Wire Strapping Length | 5 mm (0.197") |
| Screwdriver | 3 mm slotted |
| FG Connection | Must be connected to PE |
Both −V pins (4, 5) and both +V pins (6, 7) should be connected to their respective output wires to prevent excessive current stress on a single contact at 4.5A output. Verify the input voltage selector switch position before applying power. FG (Pin 3) must be connected to PE.
Output Voltage Adjustment
The S-100-24 includes a front-panel +V ADJ potentiometer and a power-on LED indicator. Output current and wattage must not exceed the rated 4.5A / 108W.
Safety
S-100-24 Safety & Cautions
- Qualified technician only. Do not remove the case yourself.
- Do not connect primary and secondary sides together — electric shock / arc hazard.
- Burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Protect ventilation openings from foreign objects and dripping liquids.
- FG (Pin 3) must be connected to PE (Protective Earth).
- Do not exceed 4.5A / 108W rated output.
- Disconnect the system from supply voltage before installation, maintenance or modification.
- Verify the input voltage selector switch position before applying power.
- Component for final equipment; final EMC must be re-confirmed.
Applications
S-100-24 Industrial Applications
24V Relay Banks
Multi-Sensor Circuits
Industrial Control Systems
Small Motor Loads
Electronic Instruments
LED Lighting
Security Systems
General 24V Equipment
Next Step
Need the S-100-24 (PM26)?
Contact DAPPRA Automation — or explore the full S Series.
Support
S-100-24 FAQ
What is the DAPPRA S-100-24 (PM26)?
The S-100-24 (internal code PM26) is a 108W single-output enclosed switching power supply delivering 24V DC at 4.5A. It belongs to the DAPPRA S Series conventional enclosed platform, uses selectable AC input 85–132VAC / 180–264VAC by switch (or 255–370VDC), achieves 84% typical efficiency, and uses free air convection cooling without a fan.
What is the input voltage range of the S-100-24?
The S-100-24 uses selectable AC input: 85–132VAC or 180–264VAC selected by an external switch, or 255–370VDC. Input frequency is 47–63Hz.
What output voltage and current does the S-100-24 provide?
The S-100-24 provides 24V DC at 4.5A for a rated output of 108W. The output voltage adjustment range is approximately 21.6–26.4V via the front-panel +V ADJ potentiometer.
Does the S-100-24 require a cooling fan?
No. The S-100-24 uses free air convection cooling without a fan. It is designed for quiet, low-maintenance installations.
What is the efficiency of the S-100-24?
The S-100-24 achieves 84% typical efficiency at 230VAC input and rated load.
What are the dimensions of the S-100-24?
The S-100-24 measures 199 × 98 × 38 mm (L × W × H) in an enclosed metal chassis with ventilation vents. Weight is approximately 0.6 kg.
What protections does the S-100-24 include?
The S-100-24 includes short circuit protection and overload protection (115–150% rated output power, shutdown and restart to recover).
What is the terminal pin assignment of the S-100-24?
The S-100-24 uses a 7-pin terminal block: Pin 1 = AC/L, Pin 2 = AC/N, Pin 3 = FG (Frame Ground), Pins 4, 5 = DC OUTPUT −V, Pins 6, 7 = DC OUTPUT +V. FG must be connected to PE.
What is the operating temperature range of the S-100-24?
The S-100-24 operates from -10°C to +60°C with derating required above +50°C.
What certifications does the S-100-24 have?
The S-100-24 is designed referring to UL1012 and FCC Part15 J Conduction Class B. Confirm the specific marking on the DAPPRA-labeled unit.
What is the warranty period for the S-100-24?
The S-100-24 comes with a 1-year warranty.
