MDR-10-5 5V 2A 10W AC DC Industrial DIN Rail Power Supply
Rp260,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 16 items sold in last 3 jam
27 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp

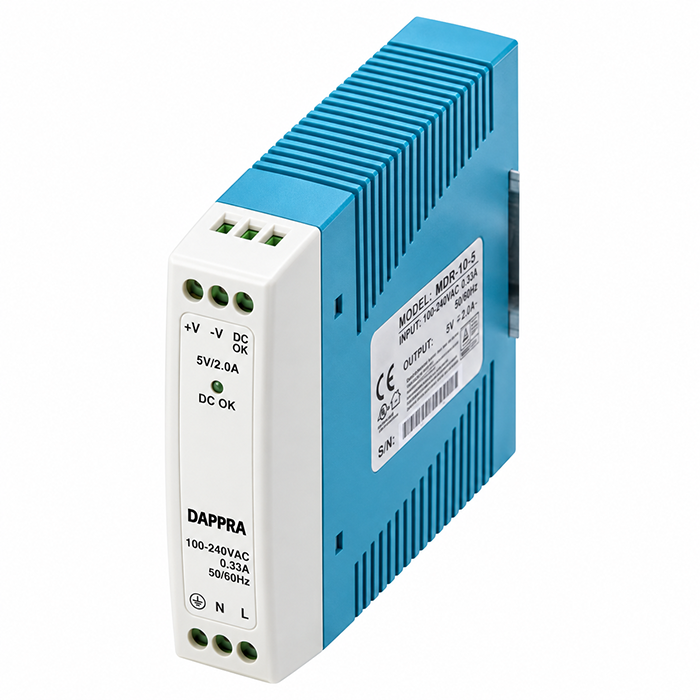

DAPPRA MDR-10-5 (SKU: OE90) is a 10W single output ultra-slim industrial DIN rail power supply with 5V DC / 2A output and universal 85–264 VAC input. Slim plastic housing, fanless natural convection cooling, complete protection functions, ideal for industrial control and automation.
Share:
Overview
MDR-10-5 Overview
The DAPPRA MDR-10-5 (SKU: OE90) is the 5V model in the MDR-10 series, the entry-level 10W tier. It provides a fixed 5V DC output at 2A from a universal 85–264 VAC input in a 22.5 mm ultra-slim blue plastic housing, making it one of the narrowest DIN rail supplies for 5V logic-level loads.
Because the output is fixed at 5V (no +V ADJ), it is best suited to circuits that are designed around a stable 5V rail: logic-level control boards, signal conditioning modules and low-power digital I/O. The DC OK active signal (logic-level, not a relay) provides status monitoring. Protection includes hiccup-mode short-circuit, overload (above 105%) and over-voltage (5.75–6.75V), all with auto-recovery. Ripple is 80mVp-p, the lowest in the MDR-10 range.
Key Features
MDR-10-5 Key Features
- 10W · 5V / 2AFixed 5V output, no +V ADJ.
- 22.5 mm Ultra-SlimBlue plastic, 22.5 × 90 × 100 mm.
- Ripple 80mVp-pLowest in the MDR-10 series.
- DC OK Active SignalLogic-level monitoring.
- Hiccup-Mode ProtectionShort-circuit, overload (above 105%) and over-voltage (5.75–6.75V).
- No-Load <0.75WEfficient standby.
- TS35 DIN RailTS35/7.5 or 15.
Specifications
MDR-10-5 Specifications
Output
| DC Voltage | 5V |
| Current | 2A |
| Power | 10W |
| Ripple | 80mVp-p |
| Adjustment | Fixed (no +V ADJ) |
| Tolerance | ±5.0% |
Input
| Voltage | 85–264VAC · 120–370VDC |
| Efficiency | 77% |
| No-Load | <0.75W |
Protection
| Overload | Above 105% · Hiccup · Auto-recovery |
| Over Voltage | 5.75–6.75V · Hiccup |
NotesFixed 5V output, no +V ADJ. DC OK active signal (not relay). Ripple 80mVp-p.
Dimensions
MDR-10-5 Dimensions
Mechanical
| Width | 22.5 mm |
| Height | 90 mm |
| Depth | 100 mm |
| Weight | ~0.17 kg |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
Installation
MDR-10-5 Installation
01 / 06
Vertical Only
Input bottom, output top.
02 / 06
Clearances
5 mm sides, 40 mm top, 20 mm bottom.
03 / 06
TS35 Rail
TS35/7.5 or 15.
04 / 06
FG to PE
Frame ground to earth.
05 / 06
Temperature
−20 to +70°C, derate above 50°C.
06 / 06
Pollution Degree 2
Dry, ventilated cabinet.
Wiring
MDR-10-5 Wiring
TB1
| Pin | Assignment |
|---|---|
| 1 | FG |
| 2 | AC/N |
| 3 | AC/L |
TB2 (3 Pins)
| Pin | Assignment |
|---|---|
| 1 | +V |
| 2 | −V |
| 3 | DC OK active signal |
DC OutputFixed 5V, 2A, 10W. DC OK is a logic-level active signal.
Safety
MDR-10-5 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- FG to PE.
- Do not exceed 2A / 10W.
- Do not use DC OK as power output.
- Disconnect before maintenance.
Applications
MDR-10-5 Industrial Applications
5V Logic Boards
Signal Conditioning
Digital I/O
Compact Cabinets
Test & Measurement
Sensor Interfaces
Building Automation
Security Modules
Next Step
Need the MDR-10-5?
Contact DAPPRA Automation — or explore the full MDR Series.
Support
MDR-10-5 FAQ
What is the DAPPRA MDR-10-5?
The DAPPRA MDR-10-5 (SKU: OE90) is a 10W single-output industrial DIN rail power supply providing 5V DC at 2A from a universal 85–264VAC input, in a 22.5 mm blue plastic housing with fixed 5V output (no +V ADJ) and DC OK active signal.
Is the MDR-10-5 suitable for 5V logic-level control circuits?
Yes. The 5V / 2A output is well-suited to 5V logic-level control boards, signal conditioning modules and low-power digital I/O. The output is fixed at 5V with ±5.0% tolerance; verify that your logic devices accept the 4.75–5.25V window.
What is the over-voltage protection threshold of the MDR-10-5?
Over-voltage protection triggers at 5.75–6.75V. The output enters hiccup mode and recovers automatically after the fault is removed.
Does the MDR-10-5 have a +V ADJ potentiometer?
No. The MDR-10 series has a fixed output voltage with no +V ADJ. If an adjustable 5V output is required, the MDR-20-5 provides a +V ADJ potentiometer.
What is the no-load power consumption of the MDR-10-5?
Below 0.75W, suitable for continuously powered cabinets where standby efficiency matters.
Does the MDR-10-5 have a DC OK relay contact?
No. It uses a DC OK active signal (logic-level), not a relay contact. For a dry relay contact, choose MDR-40 or higher.
What is the typical efficiency of the MDR-10-5?
The MDR-10-5 achieves 77% typical efficiency at 230VAC input and full load, the lowest in the MDR-10 series (12V/15V: 81%, 24V: 84%).
What is the input voltage range of the MDR-10-5?
85–264VAC single phase (47–63Hz) or 120–370VDC. Do not connect to 380VAC three-phase supply.
What protection functions does the MDR-10-5 include?
Short-circuit protection, overload protection (above 105%, hiccup mode auto-recovery) and over-voltage protection (5.75–6.75V, hiccup mode).
Is the MDR-10-5 DIN rail mountable?
Yes, TS35/7.5 or TS35/15 DIN rail, 22.5 mm width, vertical orientation only.
What are the dimensions and weight of the MDR-10-5?
22.5 × 90 × 100 mm (W × H × D), approximately 0.17 kg.
What is the terminal pin assignment of the MDR-10-5?
TB1: Pin 1 = FG, Pin 2 = AC/N, Pin 3 = AC/L. TB2 (3 pins): Pin 1 = +V, Pin 2 = −V, Pin 3 = DC OK active signal.
What is the ripple and noise of the MDR-10-5?
Maximum 80mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor — lower than the 12V/24V models (120mVp-p).
Can the MDR-10-5 be mounted horizontally?
No. Vertical orientation is required, with input terminals at the bottom and output terminals at the top, to support natural convection cooling.
What certifications does the MDR-10-5 have?
UL508, UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1 and AS/NZS 60950.1 (series-level). Confirm model coverage for your market.
