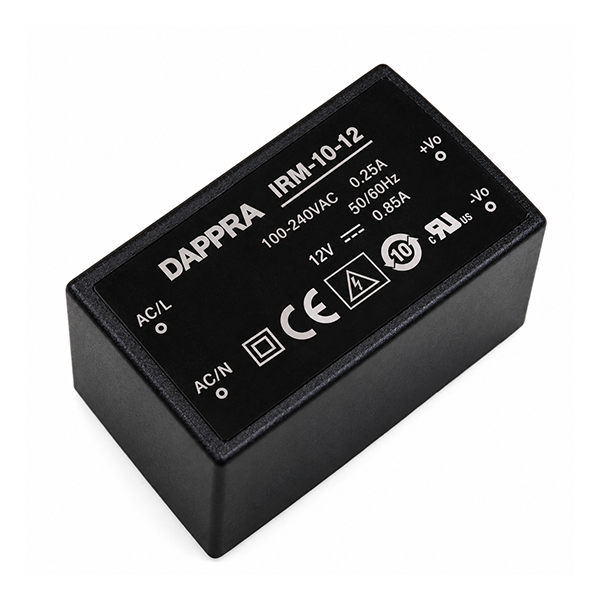

IRM-10-12 12V 0.85A 10W PCB Mount AC-DC Power Supply Module
Rp105,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 14 items sold in last 3 jam
57 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA IRM-10-12 (SKU: PS24) is a 10W single output PCB-mount industrial power module with 12V DC / 0.85A output. Universal 85–264 VAC input, compact encapsulated design, 3000VAC isolation, short circuit and overcurrent protection — ideal for embedded systems and space-constrained PCB applications.
Share:
Overview
IRM-10-12 (PS24) Overview
The DAPPRA IRM-10-12 (internal code PS24) is a 10W PCB-mount AC-DC encapsulated power module delivering 12V DC at 0.85A. It sits between the 5W IRM-05-5 and the 15W/20W models, sharing the compact 45.7 × 25.4 × 21.5 mm footprint of the IRM-05 while providing more output power for 12V loads.
The module accepts a universal AC input range of 85–264VAC (or 120–370VDC) and delivers up to 0.85A at 12V with approximately 82% typical efficiency. Like the other IRM Series modules, it is fully encapsulated and uses free air convection cooling, making it suitable for PCB-level power conversion in compact control boards, instrumentation and low-to-medium power embedded designs.
The IRM-10-12 is commonly used to provide a 12V rail for relays, sensors and interface circuits on a control board where a larger power supply is not practical. Short circuit, overload and over voltage protection are built in. Class II construction eliminates the need for an FG/PE connection in most configurations.
Key Features
IRM-10-12 Key Features
A 10W PCB-mount 12V power module in the compact IRM-05 footprint.
- 10W Output · 12V / 0.85A12V DC at 0.85A (10.2W) for on-board 12V loads.
- Universal AC Input 85–264VACAlso 120–370VDC. Confirm exact range on label (some IRM-10 variants: 85–305VAC).
- Compact 45.7 × 25.4 × 21.5 mm FootprintSame compact size as the IRM-05, but with higher output power.
- PCB-Mount Through-Hole PinsDirect soldering onto a printed circuit board.
- Fully Encapsulated ConstructionProtects against dust, moisture and vibration.
- Free Air Convection CoolingNo fan, no external heatsink.
- ~82% Typical EfficiencyGood efficiency for a 10W-class module.
- Short Circuit / Overload / Over Voltage ProtectionBuilt-in protection functions.
- Class II ConstructionNo FG/PE required for basic operation.
- -30°C to +70°C Operating RangeWith derating above +50°C.
Specifications
IRM-10-12 (PS24) Specifications
Output
| Model | IRM-10-12 (PS24) |
| DC Voltage | 12V |
| Rated Current | 0.85A |
| Current Range | 0–0.85A |
| Rated Power | 10.2W |
| Ripple & Noise (max.) | 150mVp-p |
| Voltage Tolerance | ±2.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
Protection
| Short Circuit | Auto-recovery |
| Overload | Hiccup mode or constant current limiting, auto-recovery |
| Over Voltage | Shutdown with auto-recovery or re-power |
Input
| Voltage | 85–264VAC / 120–370VDC (confirm exact range on label) |
| Frequency | 47–63Hz |
| AC Current (typ.) | 0.3A @ 115VAC · 0.18A @ 230VAC |
| Efficiency (typ.) | ~82% |
Isolation & Construction
| Isolation | I/P–O/P: 3kVAC (Class II, no FG required) |
| Encapsulation | Fully potted / encapsulated module |
| Cooling | Free air convection |
Environment
| Working Temperature | -30 ~ +70°C (derating above +50°C) |
| Storage Temperature | -40 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Cooling | Free air convection |
| Pollution Degree | 2 |
Safety & EMC
| Safety Standards | UL / IEC / EN 62368-1 (confirm marking on unit) |
| Isolation Class | Class II |
| EMC Emission | EN 55032 Class B (typical) |
| EMC Immunity | EN 61000-4 series |
Mechanical
| Dimensions (L×W×H) | Approx. 45.7 × 25.4 × 21.5 mm |
| Weight | Approx. 45 g |
| Mounting | PCB through-hole pins |
| Housing | Encapsulated module |
| Warranty | 3 Years |
Pin Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
Notes
12V / 0.85A / 10.2W. PCB-mount encapsulated module. Input 85–264VAC (confirm exact range on label). Compact 45.7 × 25.4 × 21.5 mm footprint. Class II construction. Free air convection cooling. Derating above +50°C.
Dimensions
IRM-10-12 Dimensions
Compact PCB-mount encapsulated module. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Length (L) | Approx. 45.7 mm |
| Width (W) | Approx. 25.4 mm |
| Height (H) | Approx. 21.5 mm |
| Weight | Approx. 45 g |
| Housing | Encapsulated module |
Mounting & Clearance
| Mounting | PCB through-hole pins |
| Clearance (sides) | At least 5 mm recommended |
| Clearance (top) | At least 10 mm recommended for convection |
| Soldering | Hand-solder or wave-solder per profile |
Installation
IRM-10-12 Installation
The IRM-10-12 is soldered directly onto a PCB. Correct pin orientation and thermal management are essential.
01 / 06
PCB Through-Hole Soldering
Solder the module pins into the PCB through-hole pads. Confirm pin 1 orientation before soldering.
02 / 06
Pin Orientation
AC/L, AC/N, +V and −V pins must be correctly identified. Reversing AC and DC pins can destroy the module.
03 / 06
Thermal Clearance
Allow free air convection around the module. Keep at least 5 mm side clearance and 10 mm top clearance.
04 / 06
No FG/PE Required (Class II)
Class II construction. Final equipment EMC and safety must still be evaluated.
05 / 06
External Input Fusing
Provide an external fuse or circuit breaker on the AC input side.
06 / 06
Derating Above +50°C
Full rated output up to approximately +50°C ambient. Derate above +50°C.
Wiring
IRM-10-12 Wiring & Pin Assignment
Four-pin PCB-mount configuration. Verify pin numbering before soldering.
Pin Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
Wiring Notes
| AC Input | Connect AC/L and AC/N through an external fuse. |
| DC Output | Connect +V and −V to the on-board load. |
| FG/PE | Not required in Class II configuration. |
| Output Capacitor | Add a low-ESR electrolytic capacitor near the load if long traces are used. |
Do not reverse AC and DC pins. Provide external input fusing. Keep AC and DC traces separated.
Safety
IRM-10-12 Safety & Cautions
- Qualified technician only. Do not disassemble the encapsulated module.
- Risk of electric shock. Disconnect AC mains before soldering or handling.
- Do not reverse AC and DC pins — permanent damage may result.
- Provide external input fusing or branch-circuit protection.
- Burn hazard. The module body may be hot during operation.
- Do not exceed 0.85A / 10.2W rated output.
- Class II construction does not remove the need for final equipment EMC and safety evaluation.
- Keep ventilation clearances around the module.
- Component for final equipment; final EMC must be re-confirmed.
Applications
IRM-10-12 Applications
12V Relay Boards
Sensor Interface Boards
Industrial Control Boards
Instrumentation
Compact Embedded Devices
Communication Equipment
Test & Measurement
Low-Power Control Boards
Next Step
Need the IRM-10-12 (PS24)?
Contact DAPPRA Automation — or explore the full IRM Series.
Support
IRM-10-12 FAQ
What is the DAPPRA IRM-10-12 (PS24)?
The IRM-10-12 (internal code PS24) is a 10W PCB-mount AC-DC encapsulated power module delivering 12V DC at 0.85A. It belongs to the DAPPRA IRM Series miniature PCB-mount power module platform, accepts universal 85–264VAC input, and is designed for direct soldering onto a printed circuit board.
What is the input voltage range of the IRM-10-12?
The IRM-10-12 accepts a universal AC input range of 85–264VAC (or 120–370VDC). Some IRM-10 variants are rated 85–305VAC / 120–430VDC; confirm the exact marking on the unit label.
What output voltage and current does the IRM-10-12 provide?
The IRM-10-12 provides 12V DC at 0.85A for a rated output of 10.2W.
Does the IRM-10-12 require a fan?
No. The IRM-10-12 uses free air convection cooling and is fully encapsulated. No fan or external heatsink is required.
What is the efficiency of the IRM-10-12?
The IRM-10-12 achieves approximately 82% typical efficiency.
How is the IRM-10-12 mounted?
The IRM-10-12 is a PCB-mount module with pins designed for through-hole soldering directly onto a printed circuit board.
What are the dimensions of the IRM-10-12?
The IRM-10-12 measures approximately 45.7 × 25.4 × 21.5 mm (L × W × H).
What is the operating temperature range of the IRM-10-12?
The IRM-10-12 operates from -30°C to +70°C with derating required above +50°C.
What protections does the IRM-10-12 include?
The IRM-10-12 includes short circuit protection, overload protection and over voltage protection.
What certifications does the IRM-10-12 have?
The IRM Series is typically certified to UL / IEC / EN 62368-1 and related ITE safety standards.

Related Technical Articles
3 ulasan untuk IRM-10-12 12V 0.85A 10W PCB Mount AC-DC Power Supply Module
Hanya pelanggan yang telah membeli produk ini dapat memberikan ulasan.
Mungkin Anda suka
-
-
-
-
DRM-0840-R Relay Safety Light Curtain Industrial Area Sensor
Rp2,300,000.00 -
DRM-1020-R Relay Safety Light Curtain Industrial Area Sensor
Rp1,520,000.00 -
DRM-0620-R Relay Safety Light Curtain Industrial Area Sensor
Rp1,300,000.00
Related Technical Articles
Overview
IRM-10-12 (PS24) Overview
The DAPPRA IRM-10-12 (internal code PS24) is a 10W PCB-mount AC-DC encapsulated power module delivering 12V DC at 0.85A. It sits between the 5W IRM-05-5 and the 15W/20W models, sharing the compact 45.7 × 25.4 × 21.5 mm footprint of the IRM-05 while providing more output power for 12V loads.
The module accepts a universal AC input range of 85–264VAC (or 120–370VDC) and delivers up to 0.85A at 12V with approximately 82% typical efficiency. Like the other IRM Series modules, it is fully encapsulated and uses free air convection cooling, making it suitable for PCB-level power conversion in compact control boards, instrumentation and low-to-medium power embedded designs.
The IRM-10-12 is commonly used to provide a 12V rail for relays, sensors and interface circuits on a control board where a larger power supply is not practical. Short circuit, overload and over voltage protection are built in. Class II construction eliminates the need for an FG/PE connection in most configurations.
Key Features
IRM-10-12 Key Features
A 10W PCB-mount 12V power module in the compact IRM-05 footprint.
- 10W Output · 12V / 0.85A12V DC at 0.85A (10.2W) for on-board 12V loads.
- Universal AC Input 85–264VACAlso 120–370VDC. Confirm exact range on label (some IRM-10 variants: 85–305VAC).
- Compact 45.7 × 25.4 × 21.5 mm FootprintSame compact size as the IRM-05, but with higher output power.
- PCB-Mount Through-Hole PinsDirect soldering onto a printed circuit board.
- Fully Encapsulated ConstructionProtects against dust, moisture and vibration.
- Free Air Convection CoolingNo fan, no external heatsink.
- ~82% Typical EfficiencyGood efficiency for a 10W-class module.
- Short Circuit / Overload / Over Voltage ProtectionBuilt-in protection functions.
- Class II ConstructionNo FG/PE required for basic operation.
- -30°C to +70°C Operating RangeWith derating above +50°C.
Specifications
IRM-10-12 (PS24) Specifications
Output
| Model | IRM-10-12 (PS24) |
| DC Voltage | 12V |
| Rated Current | 0.85A |
| Current Range | 0–0.85A |
| Rated Power | 10.2W |
| Ripple & Noise (max.) | 150mVp-p |
| Voltage Tolerance | ±2.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
Protection
| Short Circuit | Auto-recovery |
| Overload | Hiccup mode or constant current limiting, auto-recovery |
| Over Voltage | Shutdown with auto-recovery or re-power |
Input
| Voltage | 85–264VAC / 120–370VDC (confirm exact range on label) |
| Frequency | 47–63Hz |
| AC Current (typ.) | 0.3A @ 115VAC · 0.18A @ 230VAC |
| Efficiency (typ.) | ~82% |
Isolation & Construction
| Isolation | I/P–O/P: 3kVAC (Class II, no FG required) |
| Encapsulation | Fully potted / encapsulated module |
| Cooling | Free air convection |
Environment
| Working Temperature | -30 ~ +70°C (derating above +50°C) |
| Storage Temperature | -40 ~ +85°C |
| Working Humidity | 20–90% RH non-condensing |
| Cooling | Free air convection |
| Pollution Degree | 2 |
Safety & EMC
| Safety Standards | UL / IEC / EN 62368-1 (confirm marking on unit) |
| Isolation Class | Class II |
| EMC Emission | EN 55032 Class B (typical) |
| EMC Immunity | EN 61000-4 series |
Mechanical
| Dimensions (L×W×H) | Approx. 45.7 × 25.4 × 21.5 mm |
| Weight | Approx. 45 g |
| Mounting | PCB through-hole pins |
| Housing | Encapsulated module |
| Warranty | 3 Years |
Pin Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
Notes
12V / 0.85A / 10.2W. PCB-mount encapsulated module. Input 85–264VAC (confirm exact range on label). Compact 45.7 × 25.4 × 21.5 mm footprint. Class II construction. Free air convection cooling. Derating above +50°C.
Dimensions
IRM-10-12 Dimensions
Compact PCB-mount encapsulated module. All dimensions in mm, tolerance ±1 mm.
Mechanical
| Length (L) | Approx. 45.7 mm |
| Width (W) | Approx. 25.4 mm |
| Height (H) | Approx. 21.5 mm |
| Weight | Approx. 45 g |
| Housing | Encapsulated module |
Mounting & Clearance
| Mounting | PCB through-hole pins |
| Clearance (sides) | At least 5 mm recommended |
| Clearance (top) | At least 10 mm recommended for convection |
| Soldering | Hand-solder or wave-solder per profile |
Installation
IRM-10-12 Installation
The IRM-10-12 is soldered directly onto a PCB. Correct pin orientation and thermal management are essential.
01 / 06
PCB Through-Hole Soldering
Solder the module pins into the PCB through-hole pads. Confirm pin 1 orientation before soldering.
02 / 06
Pin Orientation
AC/L, AC/N, +V and −V pins must be correctly identified. Reversing AC and DC pins can destroy the module.
03 / 06
Thermal Clearance
Allow free air convection around the module. Keep at least 5 mm side clearance and 10 mm top clearance.
04 / 06
No FG/PE Required (Class II)
Class II construction. Final equipment EMC and safety must still be evaluated.
05 / 06
External Input Fusing
Provide an external fuse or circuit breaker on the AC input side.
06 / 06
Derating Above +50°C
Full rated output up to approximately +50°C ambient. Derate above +50°C.
Wiring
IRM-10-12 Wiring & Pin Assignment
Four-pin PCB-mount configuration. Verify pin numbering before soldering.
Pin Assignment
| Pin | Function |
|---|---|
| 1 | AC/L |
| 2 | AC/N |
| 3 | DC OUTPUT +V |
| 4 | DC OUTPUT −V |
Wiring Notes
| AC Input | Connect AC/L and AC/N through an external fuse. |
| DC Output | Connect +V and −V to the on-board load. |
| FG/PE | Not required in Class II configuration. |
| Output Capacitor | Add a low-ESR electrolytic capacitor near the load if long traces are used. |
Do not reverse AC and DC pins. Provide external input fusing. Keep AC and DC traces separated.
Safety
IRM-10-12 Safety & Cautions
- Qualified technician only. Do not disassemble the encapsulated module.
- Risk of electric shock. Disconnect AC mains before soldering or handling.
- Do not reverse AC and DC pins — permanent damage may result.
- Provide external input fusing or branch-circuit protection.
- Burn hazard. The module body may be hot during operation.
- Do not exceed 0.85A / 10.2W rated output.
- Class II construction does not remove the need for final equipment EMC and safety evaluation.
- Keep ventilation clearances around the module.
- Component for final equipment; final EMC must be re-confirmed.
Applications
IRM-10-12 Applications
12V Relay Boards
Sensor Interface Boards
Industrial Control Boards
Instrumentation
Compact Embedded Devices
Communication Equipment
Test & Measurement
Low-Power Control Boards
Next Step
Need the IRM-10-12 (PS24)?
Contact DAPPRA Automation — or explore the full IRM Series.
Support
IRM-10-12 FAQ
What is the DAPPRA IRM-10-12 (PS24)?
The IRM-10-12 (internal code PS24) is a 10W PCB-mount AC-DC encapsulated power module delivering 12V DC at 0.85A. It belongs to the DAPPRA IRM Series miniature PCB-mount power module platform, accepts universal 85–264VAC input, and is designed for direct soldering onto a printed circuit board.
What is the input voltage range of the IRM-10-12?
The IRM-10-12 accepts a universal AC input range of 85–264VAC (or 120–370VDC). Some IRM-10 variants are rated 85–305VAC / 120–430VDC; confirm the exact marking on the unit label.
What output voltage and current does the IRM-10-12 provide?
The IRM-10-12 provides 12V DC at 0.85A for a rated output of 10.2W.
Does the IRM-10-12 require a fan?
No. The IRM-10-12 uses free air convection cooling and is fully encapsulated. No fan or external heatsink is required.
What is the efficiency of the IRM-10-12?
The IRM-10-12 achieves approximately 82% typical efficiency.
How is the IRM-10-12 mounted?
The IRM-10-12 is a PCB-mount module with pins designed for through-hole soldering directly onto a printed circuit board.
What are the dimensions of the IRM-10-12?
The IRM-10-12 measures approximately 45.7 × 25.4 × 21.5 mm (L × W × H).
What is the operating temperature range of the IRM-10-12?
The IRM-10-12 operates from -30°C to +70°C with derating required above +50°C.
What protections does the IRM-10-12 include?
The IRM-10-12 includes short circuit protection, overload protection and over voltage protection.
What certifications does the IRM-10-12 have?
The IRM Series is typically certified to UL / IEC / EN 62368-1 and related ITE safety standards.
