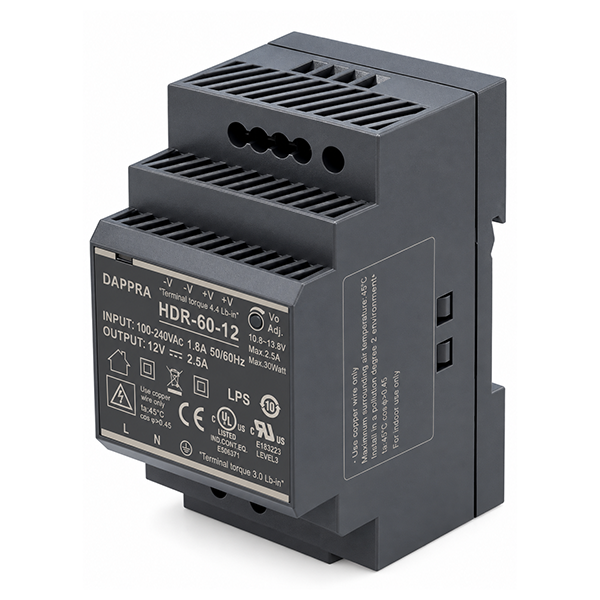

HDR-60-12 12V 5A 60W DIN Rail Switching Power Supply
Rp250,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 9 items sold in last 3 jam
48 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA HDR-60-12 (SKU: SD94) is a 60W single output ultra-slim industrial DIN rail power supply with 12V DC / 5A output. Class II double insulation (no PE required), slim 52.5 mm plastic housing, <0.3W no-load consumption, TS35 DIN rail mounting — ideal for building automation and industrial control.
Share:
Overview
HDR-60-12 Overview
The DAPPRA HDR-60-12 (SKU: SD94) is a 54W single-output ultra-slim DIN rail power supply in the HDR Series. It provides a stable 12V DC output at 4.5A from a universal 85–264 VAC input, with 88% typical efficiency and a ±10% output adjustment range of 10.8–13.8V. The “60” refers to the power class; the 12V model is current-limited at 4.5A, giving 54W total.
At 52.5 mm (3SU) wide, the HDR-60-12 provides additional heat dissipation for the higher current compared to the 35 mm HDR-30. Class II double insulation eliminates the need for a protective earth connection, and LPS certification makes it suitable for limited-energy circuits. The 6-pin terminal groups the output pins as −V (1,2) and +V (3,4), with AC/L (5) and AC/N (6) at the end — verify terminal labels before wiring. Protection includes short circuit, overload (105–160% constant current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-off with zener clamping).
Key Features
HDR-60-12 Key Features
Engineered for higher-current 12V loads in a compact 3SU footprint.
- 54W Output · 12V / 4.5A12V DC at 4.5A (0–4.5A), 54W. +V ADJ 10.8–13.8V.
- 52.5 mm (3SU) Housing52.5 × 90 × 54.5 mm, DIN EN43880 height. Additional heat dissipation for 4.5A.
- Class II Double InsulationNo FG/PE terminal, no grounding required.
- LPS CertifiedSuitable for limited-energy safety circuits.
- 88% Typical EfficiencyHigher than the HDR-15-12 (85%) and HDR-30-12 (88%, equal).
- Overload 105–160%Constant current limiting, auto-recovery.
- 6-Pin TerminalGrouped −V (1,2) / +V (3,4) / AC/L (5) / AC/N (6).
Specifications
HDR-60-12 Specifications
Output
| DC Voltage | 12V |
| Rated Current | 4.5A |
| Current Range | 0–4.5A |
| Rated Power | 54W |
| Ripple | 120mVp-p |
| Adjustment | 10.8–13.8V |
| Tolerance | ±1.0% |
Input
| Voltage | 85–264VAC (277VAC op.) · 120–370VDC |
| Efficiency | 88% |
| No-Load | <0.3W |
Protection
| Overload | 105–160% · Constant current limiting · Auto-recovery |
| Over Voltage | 14.2–16.2V · Shut off, zener clamp |
Notes12V class, 4.5A limit (54W). Class II, no PE. LPS pass. Overload 105–160%. 6-pin terminal with grouped −V/+V.
Dimensions
HDR-60-12 Dimensions
52.5 mm (3SU) step-shape housing, 90 mm height per DIN EN43880. Tolerance ±0.5 mm.
Mechanical
| Width | 52.5 mm (3SU) |
| Height | 90 mm |
| Depth | 54.5 mm |
| Housing | Plastic, Class II |
| Height Std. | DIN EN43880 |
Clearances
| Top/Bottom | 40 / 20 mm |
| Sides | 5 mm |
| DIN Rail | TS35/7.5 or 15 |
Installation
HDR-60-12 Installation
01 / 06
Vertical Only
Input bottom, output top.
02 / 06
Clearances
5 mm sides, 40 mm top, 20 mm bottom.
03 / 06
TS35 Rail
TS35/7.5 or 15.
04 / 06
Class II — No PE
No grounding required.
05 / 06
Temperature
−30 to +70°C, derate above 50°C.
06 / 06
Pollution Degree 2
Dry, ventilated cabinet.
Wiring
HDR-60-12 Wiring
TB1 (6 Pins)
| Pin | Assignment |
|---|---|
| 1, 2 | −V |
| 3, 4 | +V |
| 5 | AC/L |
| 6 | AC/N |
Output grouped −V first, then +V. AC/L pin 5, AC/N pin 6. No FG/PE.
Front Panel
| +V ADJ | 10.8–13.8V |
| Power LED | Yes |
| Class II | No PE |
| LPS | Pass |
DC Output10.8–13.8V adjustable. 4.5A / 54W max. Output grouped −V (1,2) / +V (3,4).
Safety
HDR-60-12 Safety & Cautions
- Qualified technician only.
- Do not connect primary and secondary.
- Burn hazard.
- Protect openings.
- Do not exceed 4.5A / 54W.
- Disconnect before maintenance.
- Class II — no PE, but final equipment must comply with safety/EMC.
- Verify output grouping: −V on pins 1,2; +V on pins 3,4.
Applications
HDR-60-12 Industrial Applications
12V LED Strips
12V Relays
Building Automation
Industrial Control
LPS Circuits
Security Systems
Network Equipment
Machine Control
Next Step
Need the HDR-60-12?
Contact DAPPRA Automation — or explore the full HDR Series.
Support
HDR-60-12 FAQ
What is the DAPPRA HDR-60-12?
The DAPPRA HDR-60-12 (SKU: SD94) is a 54W single-output ultra-slim DIN rail power supply providing 12V DC at 4.5A. It features a 52.5 mm (3SU) plastic step-shape housing, Class II double insulation (no grounding required), LPS certification, and 88% typical efficiency.
What is the input voltage range of the HDR-60-12?
The HDR-60-12 supports a universal AC input range of 85–264VAC (277VAC operational) or 120–370VDC (390VDC operational).
Why is the HDR-60-12 rated 54W instead of 60W?
The "60" refers to the power class. The 12V output is limited to 4.5A, giving 12V × 4.5A = 54W. The 24V/48V models in the same HDR-60 housing deliver 60W at lower currents. The 12V model operates at lower total wattage because of the 4.5A current limit chosen for this output voltage.
What is the output voltage adjustment range of the HDR-60-12?
The HDR-60-12 has a 10.8–13.8V output adjustment range via the front-panel +V ADJ potentiometer (±10% of 12V). This window is sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
What is the over-voltage protection threshold of the HDR-60-12?
The HDR-60-12 triggers over-voltage protection at 14.2–16.2V (118–135% of 12V). The protection type is shut-off output voltage with zener clamping, and the unit requires re-powering to recover.
What is the overload protection behavior of the HDR-60-12?
The HDR-60-12 uses 105–160% rated output power protection with constant current limiting. The unit recovers automatically after the fault condition is removed.
What is the ripple and noise of the HDR-60-12?
The maximum ripple and noise is 120mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor.
What are the dimensions and weight of the HDR-60-12?
The HDR-60-12 measures 52.5 × 90 × 54.5 mm (W × H × D). The 52.5 mm (3SU) width is wider than the HDR-30 (35 mm) and provides additional heat dissipation for the 54W output.
What is the terminal pin assignment of the HDR-60-12?
TB1 (6 pins): Pins 1, 2 = DC OUTPUT −V; Pins 3, 4 = DC OUTPUT +V; Pin 5 = AC/L; Pin 6 = AC/N. Note that the output pins are grouped as −V first, then +V — this differs from the HDR-30 (single +V and −V pin) and HDR-100 (AC first). Verify terminal labels before wiring.
What is the no-load power consumption of the HDR-60-12?
No-load power consumption is below 0.3W, supporting energy-efficient standby operation.
What is the operating temperature range of the HDR-60-12?
The HDR-60-12 operates from −30°C to +70°C with free air convection cooling. Derating is required above +50°C ambient.
Can the HDR-60-12 be used without connecting protective earth?
Yes. Because the HDR-60-12 is Class II double insulated, no protective earth (PE) connection is required. The plastic housing effectively prevents user contact with electrical hazards.
Does the HDR-60-12 pass LPS?
Yes. The HDR-60-12 passes LPS (Limited Power Source) certification, making it suitable for safety-critical circuits that require limited available energy under fault conditions.
What certifications does the HDR-60-12 have?
The HDR-60-12 is certified to UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004 and BSMI CNS14336-1. It complies with BS EN/EN61000-6-2 industrial immunity and BS EN/EN61000-3-2 Class A harmonic current requirements.
How does the HDR-60-12 differ from the HDR-30-12?
The HDR-60-12 more than doubles the output current to 4.5A (54W vs 24W) and widens the housing from 35 mm (2SU) to 52.5 mm (3SU). It uses a 6-pin terminal with grouped −V/+V pins, whereas the HDR-30-12 uses a 4-pin terminal. Both share the same ±10% adjustment window and Class II/LPS characteristics, but the HDR-60-12 is the choice when the 12V load exceeds 2A.
