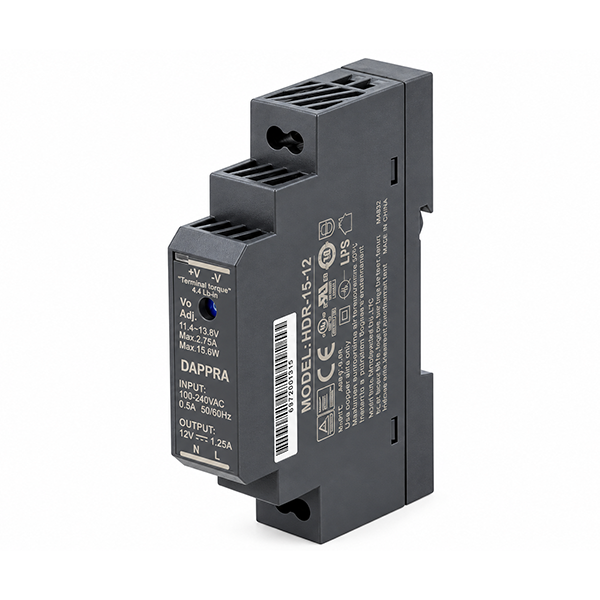

HDR-15-12 15W 12V 1.25A Ultra-Slim DIN Rail Power Supply
Rp160,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 6 items sold in last 3 jam
47 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
DAPPRA HDR-15-12 (SKU: SD90) is a 15W single output ultra-slim industrial DIN rail power supply with 12V DC / 1.25A output and universal 85–264 VAC input. Features Class II double insulation (no PE required), LPS certification, ultra-slim 17.5 mm (1SU) plastic housing, <0.3W no-load consumption, TS35 DIN rail mounting, 3-year warranty — ideal for building automation and household control systems.
Share:
Overview
HDR-15-12 Overview
The DAPPRA HDR-15-12 (SKU: SD90) is a 15W single-output ultra-slim DIN rail power supply in the HDR Series. It provides a stable 12V DC output at 1.25A from a universal 85–264 VAC input or 120–370 VDC input, with 85% typical efficiency and a narrow 10.8–13.8V output adjustment range.
At only 17.5 mm wide (1SU), the HDR-15-12 is the narrowest model in the HDR Series, designed for space-constrained building automation, household control and industrial control cabinets. The entire unit is Class II double insulated with a plastic step-shape housing — no protective earth (PE) connection is required. It passes LPS (Limited Power Source) certification, making it suitable for safety-critical limited-energy circuits. Complete protection includes short circuit, overload (110–145%, hiccup/constant-current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-off with zener clamping). No-load consumption is below 0.3W, and the unit operates from −30°C to +70°C with derating above +50°C.
Key Features
HDR-15-12 Key Features
Engineered for ultra-slim, safety-isolated 12V power in building and household control systems.
- 15W Output · 12V / 1.25ASingle output providing 12V DC at 1.25A (0–1.25A range) with 15W rated power. Output adjustable 10.8–13.8V via +V ADJ.
- Ultra-Slim 17.5 mm (1SU) HousingThe narrowest in the HDR Series, with a uniform 90 mm height in line with DIN EN43880. Saves critical DIN rail space in compact cabinets.
- Class II Double InsulationPlastic step-shape housing with no FG/PE terminal. No grounding connection required, simplifying installation in building automation and household control systems.
- LPS (Limited Power Source) CertifiedPasses LPS certification for use in safety-critical circuits that require limited available energy under fault conditions.
- 85% Typical EfficiencyReduces energy consumption and heat generation inside the control cabinet.
- No-Load Consumption <0.3WFulfills worldwide low-power regulations for household and industrial electronics.
- Complete Protection FunctionsShort circuit, overload (110–145%, hiccup/constant-current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-off with zener clamping) protection.
- Wide Operating Temperature Range−30°C to +70°C with derating above +50°C. Free air convection cooling with no moving parts.
- TS35 DIN Rail MountingStandard TS35/7.5 or TS35/15 rail. LED power-on indicator. 3-year warranty.
Specifications
HDR-15-12 Specifications
Complete technical specifications for the HDR-15-12 ultra-slim Class II DIN rail power supply.
Output
| DC Output Voltage | 12V |
| Rated Current | 1.25A |
| Current Range | 0–1.25A |
| Rated Power | 15W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adjustment Range | 10.8–13.8V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 2000ms, 80ms/230VAC · 2000ms, 80ms/115VAC at full load |
| Hold Up Time (Typ.) | 30ms/230VAC · 12ms/115VAC at full load |
Input
| Voltage Range | 85–264VAC (277VAC operational) · 120–370VDC (390VDC operational) |
| Frequency Range | 47–63Hz |
| Efficiency (Typ.) | 85% |
| AC Current (Typ.) | 0.5A/115VAC · 0.25A/230VAC |
| Inrush Current (Typ.) | Cold start 25A/115VAC · 45A/230VAC |
| No-Load Power | <0.3W |
Protection
| Overload | 110–145% rated output power · Hiccup mode (<50% Vo) / Constant current limiting (50–100% Vo) · Auto-recovery |
| Over Voltage | 14.2–16.2V · Shut off output, zener clamping · Re-power to recover |
| Short Circuit | Protected |
Environment
| Working Temperature | −30 ~ +70°C (Derating above +50°C) |
| Working Humidity | 20–90% RH non-condensing |
| Storage Temp., Humidity | −40 ~ +85°C, 10–95% RH |
| Temp. Coefficient | ±0.03%/°C (0–50°C) |
| Vibration | 10–500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Operating Altitude | 2000 meters |
Safety & EMC
| Safety Standards | UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 |
| Withstand Voltage | I/P-O/P: 4KVAC |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH |
| EMC Emission | BS EN/EN55032 Class B · BS EN/EN61000-3-2 Class A · BS EN/EN61000-3-3 |
| EMC Immunity | BS EN/EN61000-6-2 (BS EN/EN50082-2) heavy industry level · BS EN/EN61000-4-2,3,4,5,6,8,11 |
Reliability & Dimensions
| MTBF | 1166K hrs min. MIL-HDBK-217F (25°C) |
| Dimensions (W×H×D) | 17.5 × 90 × 54.5 mm |
| Weight | Approx. 78 g |
| Housing | Plastic, step-shape, Class II |
| Warranty | 3 Years |
Front Panel
| +V ADJ | Output voltage adjustment potentiometer (10.8–13.8V) |
| Power LED | Power-on indicator LED |
| Isolation Class | Class II (no FG/PE terminal) |
| LPS | Pass (Limited Power Source) |
Notes
1. All parameters measured at 230VAC input, rated load and 25°C ambient unless noted. 2. Ripple & noise measured at 20MHz bandwidth with 0.1μF & 47μF parallel capacitor. 3. The HDR-15-12 is Class II double insulated — no FG/PE connection is required. 4. Derating is required above +50°C ambient. 5. Over-voltage protection shuts off the output and requires re-powering to recover.
Dimensions
HDR-15-12 Dimensions
Ultra-slim 17.5 mm (1SU) plastic step-shape housing with uniform 90 mm height in line with DIN EN43880. All dimensions in mm, tolerance ±0.5 mm.
Mechanical Dimensions
| Width (W) | 17.5 mm (1SU) |
| Height (H) | 90 mm |
| Depth (D) | 54.5 mm |
| Weight | Approx. 78 g |
| Housing | Plastic, step-shape, Class II |
| Height Standard | DIN EN43880 |
Installation Clearances
| Top Clearance | 40 mm |
| Bottom Clearance | 20 mm |
| Left / Right Clearance | 5 mm |
| Adjacent Heat Source | 100–150 mm recommended |
| DIN Rail | TS35/7.5 or TS35/15 |
| Mounting Orientation | Vertical only (input bottom, output top) |
Installation
HDR-15-12 Installation
The HDR-15-12 supports TS35 DIN rail mounting with specific ventilation clearance and orientation requirements for reliable operation.
01 / 06
Vertical Orientation Only
The appropriate mounting orientation is vertical — input terminals at the bottom and output terminals at the top. Upside-down, horizontal or table-top mounting is not allowed, as sufficient cooling will not be possible.
02 / 06
Ventilation Clearance
Always allow good ventilation clearances around the unit: 5 mm left and right, 40 mm above and 20 mm below, to prevent overheating. When the adjacent device is a heat source, keep 100–150 mm clearance.
03 / 06
TS35 DIN Rail Mounting
Admissible DIN rail: TS35/7.5 or TS35/15. Tilt the unit slightly rearwards, fit over the top hat rail, slide it downward until it hits the stop, press against the bottom for locking, then shake slightly to check the locking action.
04 / 06
Class II — No Grounding Required
The HDR-15-12 is Class II double insulated with a plastic housing. No protective earth (PE) connection is required. The plastic housing effectively prevents user contact with electrical hazards.
05 / 06
Operating Temperature Limits
The HDR-15-12 operates from −30°C to +70°C, with derating required above +50°C. Do not install near fire sources or in high ambient temperature locations.
06 / 06
Pollution Degree 2 Environment
Install the unit only in a pollution degree 2 environment — typically dry, well-ventilated locations such as control cabinets. Do not install in places with high moisture or near water.
Wiring & Terminal
HDR-15-12 Wiring & Terminal
The HDR-15-12 uses a 4-pin terminal block. Note that the pin order differs from other HDR models — verify the terminal label before wiring.
Terminal Pin Assignment
TB1 — 4 Pins
| Pin No. | Assignment |
|---|---|
| 1 | DC OUTPUT +V |
| 2 | DC OUTPUT −V |
| 3 | AC/N |
| 4 | AC/L |
No FG/PE pin — Class II double insulation. AC/N is pin 3 and AC/L is pin 4 on the HDR-15. This differs from the HDR-30 (AC/L pin 3, AC/N pin 4). Verify terminal labels before wiring.
Front Panel Controls
| +V ADJ | Output voltage adjustment potentiometer (10.8–13.8V) |
| Power LED | Power-on indicator LED |
| Isolation | Class II (no grounding required) |
| LPS | Pass (Limited Power Source) |
The HDR-15-12 has no FG/PE terminal because it is Class II double insulated. Connect AC/L (pin 4) to live and AC/N (pin 3) to neutral. The DC output +V (pin 1) and −V (pin 2) connect to the load. Always verify the terminal label before wiring — the HDR-15 pin order differs from the HDR-30.
Wiring Specification
Recommended Wire
| AWG | Rated Current | Cross-section |
|---|---|---|
| 20 | 0–3 A | 0.5 mm² |
| 18 | 0–6 A | 0.75 mm² |
| 16 | 6–10 A | 1.00 mm² |
Use stranded copper wire rated at least 80°C, such as UL1007.
Terminal Torque Setting
| Model | Torque |
|---|---|
| HDR-15-12 | 4.5 kgf-cm (4 Lb-in) |
Recommended screwdriver: 3 mm slotted type.
LPS & Class II Notes
| LPS | Pass — suitable for limited-energy circuits |
| Class II | Double insulated, no PE required |
| Over-Voltage Category | III (EN61558, EN50178, EN60664-1) |
DC Output Voltage Adjustment
The HDR-15-12 includes a front-panel +V ADJ potentiometer with a 10.8–13.8V adjustment range and a power-on LED indicator. Output current and wattage must not exceed the rated 1.25A / 15W. The narrow ±10% adjustment window is sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
Safety & Compliance
HDR-15-12 Safety & Cautions
Read and follow all safety instructions before installing, wiring, maintaining or modifying the HDR-15-12 power supply.
- Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Do not remove the case of the power supply yourself.
- Connecting both the primary and the secondary sides together is not allowed — risk of electric arcs and electric shock (danger to life).
- Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
- Output current and output wattage must not exceed the rated 1.25A / 15W.
- Before commencing any installation, maintenance or modification work, disconnect the system from supply voltage. Make sure that inadvertent connection in circuit will be impossible.
- Although the HDR-15-12 is Class II and requires no PE connection, the final equipment must still comply with applicable safety and EMC directives.
- The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Note: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation. Generally refers to dry, well-ventilated locations, such as control cabinets.
Applications
HDR-15-12 Industrial Applications
The HDR-15-12 is suitable for building automation, household control systems, home automation, security systems, network equipment, and compact industrial control applications where a narrow 1SU footprint and Class II insulation are advantageous.
Building Automation
Household Control Systems
Home Automation
Security Systems
Network Equipment
Compact Industrial Control
Sensor & Relay Power
Limited-Energy (LPS) Circuits
Telecommunication
Next Step
Need the HDR-15-12 for Your Application?
Contact DAPPRA Automation for specifications, installation support and purchasing assistance — or explore the full HDR Series.
Support
HDR-15-12 FAQ
What is the DAPPRA HDR-15-12?
The DAPPRA HDR-15-12 (SKU: SD90) is a 15W single-output ultra-slim DIN rail power supply providing 12V DC at 1.25A. It features a 17.5 mm (1SU) plastic step-shape housing, Class II double insulation (no grounding required), LPS certification, and 85% typical efficiency.
What is the input voltage range of the HDR-15-12?
The HDR-15-12 supports a universal AC input range of 85–264VAC (277VAC operational) or 120–370VDC (390VDC operational).
Is the HDR-15-12 Class II double insulated?
Yes. The HDR-15-12 is Class II double insulated with a plastic step-shape housing. No grounding connection (FG/PE) is required, simplifying installation in building automation and household control systems.
Does the HDR-15-12 pass LPS?
Yes. The HDR-15-12 passes LPS (Limited Power Source) certification, making it suitable for safety-critical circuits that require limited available energy under fault conditions.
What is the output voltage adjustment range of the HDR-15-12?
The HDR-15-12 has a 10.8–13.8V output adjustment range via the front-panel +V ADJ potentiometer (±10% of 12V). This narrow window is sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
What is the over-voltage protection threshold of the HDR-15-12?
The HDR-15-12 triggers over-voltage protection at 14.2–16.2V (115–150% of 12V). The protection type is shut-off output voltage with zener clamping, and the unit requires re-powering to recover.
What is the overload protection behavior of the HDR-15-12?
The HDR-15-12 uses 110–145% rated output power protection. Below 50% output voltage it operates in hiccup mode; within 50–100% output voltage it uses constant current limiting. In both cases, the unit recovers automatically after the fault condition is removed.
What is the ripple and noise of the HDR-15-12?
The maximum ripple and noise is 120mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor.
What are the dimensions and weight of the HDR-15-12?
The HDR-15-12 measures 17.5 × 90 × 54.5 mm (W × H × D) and weighs approximately 78 g. The 17.5 mm (1SU) width is the narrowest in the HDR Series.
What is the terminal pin assignment of the HDR-15-12?
TB1 (4 pins): Pin 1 = DC OUTPUT +V, Pin 2 = DC OUTPUT −V, Pin 3 = AC/N, Pin 4 = AC/L. There is no FG/PE pin because the unit is Class II double insulated. Verify terminal labels before wiring.
What is the no-load power consumption of the HDR-15-12?
No-load power consumption is below 0.3W, supporting energy-efficient standby operation.
What is the operating temperature range of the HDR-15-12?
The HDR-15-12 operates from −30°C to +70°C with free air convection cooling. Derating is required above +50°C ambient.
Can the HDR-15-12 be used without connecting protective earth?
Yes. Because the HDR-15-12 is Class II double insulated, no protective earth (PE) connection is required. The plastic housing effectively prevents user contact with electrical hazards.
What is the MTBF of the HDR-15-12?
The HDR-15-12 has an MTBF of 1166K hours minimum (MIL-HDBK-217F at 25°C).
What certifications does the HDR-15-12 have?
The HDR-15-12 is certified to UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004 and BSMI CNS14336-1. It complies with BS EN/EN61000-6-2 industrial immunity and BS EN/EN61000-3-2 Class A harmonic current requirements.
Related Technical Articles
12 ulasan untuk HDR-15-12 15W 12V 1.25A Ultra-Slim DIN Rail Power Supply
Hanya pelanggan yang telah membeli produk ini dapat memberikan ulasan.
Mungkin Anda suka
-
-
-
-
DRM-0840-R Relay Safety Light Curtain Industrial Area Sensor
Rp2,300,000.00 -
DRM-1020-R Relay Safety Light Curtain Industrial Area Sensor
Rp1,520,000.00 -
DRM-0620-R Relay Safety Light Curtain Industrial Area Sensor
Rp1,300,000.00
Related Technical Articles
Overview
HDR-15-12 Overview
The DAPPRA HDR-15-12 (SKU: SD90) is a 15W single-output ultra-slim DIN rail power supply in the HDR Series. It provides a stable 12V DC output at 1.25A from a universal 85–264 VAC input or 120–370 VDC input, with 85% typical efficiency and a narrow 10.8–13.8V output adjustment range.
At only 17.5 mm wide (1SU), the HDR-15-12 is the narrowest model in the HDR Series, designed for space-constrained building automation, household control and industrial control cabinets. The entire unit is Class II double insulated with a plastic step-shape housing — no protective earth (PE) connection is required. It passes LPS (Limited Power Source) certification, making it suitable for safety-critical limited-energy circuits. Complete protection includes short circuit, overload (110–145%, hiccup/constant-current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-off with zener clamping). No-load consumption is below 0.3W, and the unit operates from −30°C to +70°C with derating above +50°C.
Key Features
HDR-15-12 Key Features
Engineered for ultra-slim, safety-isolated 12V power in building and household control systems.
- 15W Output · 12V / 1.25ASingle output providing 12V DC at 1.25A (0–1.25A range) with 15W rated power. Output adjustable 10.8–13.8V via +V ADJ.
- Ultra-Slim 17.5 mm (1SU) HousingThe narrowest in the HDR Series, with a uniform 90 mm height in line with DIN EN43880. Saves critical DIN rail space in compact cabinets.
- Class II Double InsulationPlastic step-shape housing with no FG/PE terminal. No grounding connection required, simplifying installation in building automation and household control systems.
- LPS (Limited Power Source) CertifiedPasses LPS certification for use in safety-critical circuits that require limited available energy under fault conditions.
- 85% Typical EfficiencyReduces energy consumption and heat generation inside the control cabinet.
- No-Load Consumption <0.3WFulfills worldwide low-power regulations for household and industrial electronics.
- Complete Protection FunctionsShort circuit, overload (110–145%, hiccup/constant-current limiting, auto-recovery) and over-voltage (14.2–16.2V, shut-off with zener clamping) protection.
- Wide Operating Temperature Range−30°C to +70°C with derating above +50°C. Free air convection cooling with no moving parts.
- TS35 DIN Rail MountingStandard TS35/7.5 or TS35/15 rail. LED power-on indicator. 3-year warranty.
Specifications
HDR-15-12 Specifications
Complete technical specifications for the HDR-15-12 ultra-slim Class II DIN rail power supply.
Output
| DC Output Voltage | 12V |
| Rated Current | 1.25A |
| Current Range | 0–1.25A |
| Rated Power | 15W |
| Ripple & Noise (max.) | 120mVp-p |
| Voltage Adjustment Range | 10.8–13.8V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 2000ms, 80ms/230VAC · 2000ms, 80ms/115VAC at full load |
| Hold Up Time (Typ.) | 30ms/230VAC · 12ms/115VAC at full load |
Input
| Voltage Range | 85–264VAC (277VAC operational) · 120–370VDC (390VDC operational) |
| Frequency Range | 47–63Hz |
| Efficiency (Typ.) | 85% |
| AC Current (Typ.) | 0.5A/115VAC · 0.25A/230VAC |
| Inrush Current (Typ.) | Cold start 25A/115VAC · 45A/230VAC |
| No-Load Power | <0.3W |
Protection
| Overload | 110–145% rated output power · Hiccup mode (<50% Vo) / Constant current limiting (50–100% Vo) · Auto-recovery |
| Over Voltage | 14.2–16.2V · Shut off output, zener clamping · Re-power to recover |
| Short Circuit | Protected |
Environment
| Working Temperature | −30 ~ +70°C (Derating above +50°C) |
| Working Humidity | 20–90% RH non-condensing |
| Storage Temp., Humidity | −40 ~ +85°C, 10–95% RH |
| Temp. Coefficient | ±0.03%/°C (0–50°C) |
| Vibration | 10–500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Operating Altitude | 2000 meters |
Safety & EMC
| Safety Standards | UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 |
| Withstand Voltage | I/P-O/P: 4KVAC |
| Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC / 25°C / 70% RH |
| EMC Emission | BS EN/EN55032 Class B · BS EN/EN61000-3-2 Class A · BS EN/EN61000-3-3 |
| EMC Immunity | BS EN/EN61000-6-2 (BS EN/EN50082-2) heavy industry level · BS EN/EN61000-4-2,3,4,5,6,8,11 |
Reliability & Dimensions
| MTBF | 1166K hrs min. MIL-HDBK-217F (25°C) |
| Dimensions (W×H×D) | 17.5 × 90 × 54.5 mm |
| Weight | Approx. 78 g |
| Housing | Plastic, step-shape, Class II |
| Warranty | 3 Years |
Front Panel
| +V ADJ | Output voltage adjustment potentiometer (10.8–13.8V) |
| Power LED | Power-on indicator LED |
| Isolation Class | Class II (no FG/PE terminal) |
| LPS | Pass (Limited Power Source) |
Notes
1. All parameters measured at 230VAC input, rated load and 25°C ambient unless noted. 2. Ripple & noise measured at 20MHz bandwidth with 0.1μF & 47μF parallel capacitor. 3. The HDR-15-12 is Class II double insulated — no FG/PE connection is required. 4. Derating is required above +50°C ambient. 5. Over-voltage protection shuts off the output and requires re-powering to recover.
Dimensions
HDR-15-12 Dimensions
Ultra-slim 17.5 mm (1SU) plastic step-shape housing with uniform 90 mm height in line with DIN EN43880. All dimensions in mm, tolerance ±0.5 mm.
Mechanical Dimensions
| Width (W) | 17.5 mm (1SU) |
| Height (H) | 90 mm |
| Depth (D) | 54.5 mm |
| Weight | Approx. 78 g |
| Housing | Plastic, step-shape, Class II |
| Height Standard | DIN EN43880 |
Installation Clearances
| Top Clearance | 40 mm |
| Bottom Clearance | 20 mm |
| Left / Right Clearance | 5 mm |
| Adjacent Heat Source | 100–150 mm recommended |
| DIN Rail | TS35/7.5 or TS35/15 |
| Mounting Orientation | Vertical only (input bottom, output top) |
Installation
HDR-15-12 Installation
The HDR-15-12 supports TS35 DIN rail mounting with specific ventilation clearance and orientation requirements for reliable operation.
01 / 06
Vertical Orientation Only
The appropriate mounting orientation is vertical — input terminals at the bottom and output terminals at the top. Upside-down, horizontal or table-top mounting is not allowed, as sufficient cooling will not be possible.
02 / 06
Ventilation Clearance
Always allow good ventilation clearances around the unit: 5 mm left and right, 40 mm above and 20 mm below, to prevent overheating. When the adjacent device is a heat source, keep 100–150 mm clearance.
03 / 06
TS35 DIN Rail Mounting
Admissible DIN rail: TS35/7.5 or TS35/15. Tilt the unit slightly rearwards, fit over the top hat rail, slide it downward until it hits the stop, press against the bottom for locking, then shake slightly to check the locking action.
04 / 06
Class II — No Grounding Required
The HDR-15-12 is Class II double insulated with a plastic housing. No protective earth (PE) connection is required. The plastic housing effectively prevents user contact with electrical hazards.
05 / 06
Operating Temperature Limits
The HDR-15-12 operates from −30°C to +70°C, with derating required above +50°C. Do not install near fire sources or in high ambient temperature locations.
06 / 06
Pollution Degree 2 Environment
Install the unit only in a pollution degree 2 environment — typically dry, well-ventilated locations such as control cabinets. Do not install in places with high moisture or near water.
Wiring & Terminal
HDR-15-12 Wiring & Terminal
The HDR-15-12 uses a 4-pin terminal block. Note that the pin order differs from other HDR models — verify the terminal label before wiring.
Terminal Pin Assignment
TB1 — 4 Pins
| Pin No. | Assignment |
|---|---|
| 1 | DC OUTPUT +V |
| 2 | DC OUTPUT −V |
| 3 | AC/N |
| 4 | AC/L |
No FG/PE pin — Class II double insulation. AC/N is pin 3 and AC/L is pin 4 on the HDR-15. This differs from the HDR-30 (AC/L pin 3, AC/N pin 4). Verify terminal labels before wiring.
Front Panel Controls
| +V ADJ | Output voltage adjustment potentiometer (10.8–13.8V) |
| Power LED | Power-on indicator LED |
| Isolation | Class II (no grounding required) |
| LPS | Pass (Limited Power Source) |
The HDR-15-12 has no FG/PE terminal because it is Class II double insulated. Connect AC/L (pin 4) to live and AC/N (pin 3) to neutral. The DC output +V (pin 1) and −V (pin 2) connect to the load. Always verify the terminal label before wiring — the HDR-15 pin order differs from the HDR-30.
Wiring Specification
Recommended Wire
| AWG | Rated Current | Cross-section |
|---|---|---|
| 20 | 0–3 A | 0.5 mm² |
| 18 | 0–6 A | 0.75 mm² |
| 16 | 6–10 A | 1.00 mm² |
Use stranded copper wire rated at least 80°C, such as UL1007.
Terminal Torque Setting
| Model | Torque |
|---|---|
| HDR-15-12 | 4.5 kgf-cm (4 Lb-in) |
Recommended screwdriver: 3 mm slotted type.
LPS & Class II Notes
| LPS | Pass — suitable for limited-energy circuits |
| Class II | Double insulated, no PE required |
| Over-Voltage Category | III (EN61558, EN50178, EN60664-1) |
DC Output Voltage Adjustment
The HDR-15-12 includes a front-panel +V ADJ potentiometer with a 10.8–13.8V adjustment range and a power-on LED indicator. Output current and wattage must not exceed the rated 1.25A / 15W. The narrow ±10% adjustment window is sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
Safety & Compliance
HDR-15-12 Safety & Cautions
Read and follow all safety instructions before installing, wiring, maintaining or modifying the HDR-15-12 power supply.
- Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Do not remove the case of the power supply yourself.
- Connecting both the primary and the secondary sides together is not allowed — risk of electric arcs and electric shock (danger to life).
- Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
- Output current and output wattage must not exceed the rated 1.25A / 15W.
- Before commencing any installation, maintenance or modification work, disconnect the system from supply voltage. Make sure that inadvertent connection in circuit will be impossible.
- Although the HDR-15-12 is Class II and requires no PE connection, the final equipment must still comply with applicable safety and EMC directives.
- The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Note: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation. Generally refers to dry, well-ventilated locations, such as control cabinets.
Applications
HDR-15-12 Industrial Applications
The HDR-15-12 is suitable for building automation, household control systems, home automation, security systems, network equipment, and compact industrial control applications where a narrow 1SU footprint and Class II insulation are advantageous.
Building Automation
Household Control Systems
Home Automation
Security Systems
Network Equipment
Compact Industrial Control
Sensor & Relay Power
Limited-Energy (LPS) Circuits
Telecommunication
Next Step
Need the HDR-15-12 for Your Application?
Contact DAPPRA Automation for specifications, installation support and purchasing assistance — or explore the full HDR Series.
Support
HDR-15-12 FAQ
What is the DAPPRA HDR-15-12?
The DAPPRA HDR-15-12 (SKU: SD90) is a 15W single-output ultra-slim DIN rail power supply providing 12V DC at 1.25A. It features a 17.5 mm (1SU) plastic step-shape housing, Class II double insulation (no grounding required), LPS certification, and 85% typical efficiency.
What is the input voltage range of the HDR-15-12?
The HDR-15-12 supports a universal AC input range of 85–264VAC (277VAC operational) or 120–370VDC (390VDC operational).
Is the HDR-15-12 Class II double insulated?
Yes. The HDR-15-12 is Class II double insulated with a plastic step-shape housing. No grounding connection (FG/PE) is required, simplifying installation in building automation and household control systems.
Does the HDR-15-12 pass LPS?
Yes. The HDR-15-12 passes LPS (Limited Power Source) certification, making it suitable for safety-critical circuits that require limited available energy under fault conditions.
What is the output voltage adjustment range of the HDR-15-12?
The HDR-15-12 has a 10.8–13.8V output adjustment range via the front-panel +V ADJ potentiometer (±10% of 12V). This narrow window is sufficient for voltage-drop compensation without exceeding the tolerance of most 12V devices.
What is the over-voltage protection threshold of the HDR-15-12?
The HDR-15-12 triggers over-voltage protection at 14.2–16.2V (115–150% of 12V). The protection type is shut-off output voltage with zener clamping, and the unit requires re-powering to recover.
What is the overload protection behavior of the HDR-15-12?
The HDR-15-12 uses 110–145% rated output power protection. Below 50% output voltage it operates in hiccup mode; within 50–100% output voltage it uses constant current limiting. In both cases, the unit recovers automatically after the fault condition is removed.
What is the ripple and noise of the HDR-15-12?
The maximum ripple and noise is 120mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor.
What are the dimensions and weight of the HDR-15-12?
The HDR-15-12 measures 17.5 × 90 × 54.5 mm (W × H × D) and weighs approximately 78 g. The 17.5 mm (1SU) width is the narrowest in the HDR Series.
What is the terminal pin assignment of the HDR-15-12?
TB1 (4 pins): Pin 1 = DC OUTPUT +V, Pin 2 = DC OUTPUT −V, Pin 3 = AC/N, Pin 4 = AC/L. There is no FG/PE pin because the unit is Class II double insulated. Verify terminal labels before wiring.
What is the no-load power consumption of the HDR-15-12?
No-load power consumption is below 0.3W, supporting energy-efficient standby operation.
What is the operating temperature range of the HDR-15-12?
The HDR-15-12 operates from −30°C to +70°C with free air convection cooling. Derating is required above +50°C ambient.
Can the HDR-15-12 be used without connecting protective earth?
Yes. Because the HDR-15-12 is Class II double insulated, no protective earth (PE) connection is required. The plastic housing effectively prevents user contact with electrical hazards.
What is the MTBF of the HDR-15-12?
The HDR-15-12 has an MTBF of 1166K hours minimum (MIL-HDBK-217F at 25°C).
What certifications does the HDR-15-12 have?
The HDR-15-12 is certified to UL62368-1, UL508, TUV BS EN/EN61558-2-16, IEC62368-1, EAC TP TC 004 and BSMI CNS14336-1. It complies with BS EN/EN61000-6-2 industrial immunity and BS EN/EN61000-3-2 Class A harmonic current requirements.
12 ulasan untuk HDR-15-12 15W 12V 1.25A Ultra-Slim DIN Rail Power Supply
-
Produk Original Produk Sesuai Deskripsi Produk Real Pict Packaging Rapi &Aman
-
Ok
-
Alhamdulillah sdh smpe. brfungsi dgn baik. ma kasih gan 🙏🏻
-
Produk Original Produk Real Pict Packaging Rapi & Aman Produk Sesuai Deskripsi
-
Respon yang cukup baik dari penjual & tokoped, barang yg kurang sdh dikirim dan sesuai, terimakasih atas respon nya
-
Produk Sesuai Deskripsi
-
-
-
-
Hanya pelanggan yang telah membeli produk ini dapat memberikan ulasan.
Pilihan lainnya untukmu
Lihat produk terkait
Deny (pemilik terverifikasi) –
Produk Original Produk Sesuai Deskripsi Produk Real Pict Packaging Rapi &Aman
C**** (pemilik terverifikasi) –
Ok
Wahy* (pemilik terverifikasi) –
Alhamdulillah sdh smpe. brfungsi dgn baik. ma kasih gan 🙏🏻
Deny (pemilik terverifikasi) –
Produk Original Produk Real Pict Packaging Rapi & Aman Produk Sesuai Deskripsi
Fadi** (pemilik terverifikasi) –
Respon yang cukup baik dari penjual & tokoped, barang yg kurang sdh dikirim dan sesuai, terimakasih atas respon nya
Iria*** (pemilik terverifikasi) –
Produk Sesuai Deskripsi
ARIE* (pemilik terverifikasi) –
Bob (pemilik terverifikasi) –
Harr* (pemilik terverifikasi) –
Harr* (pemilik terverifikasi) –
