What is the DAPPRA DR-75-24?

The DAPPRA DR-75-24 (SKU: PM25) is a 76.8W single-output DIN rail power supply providing 24V DC at 3.2A. It is a General Type model with a 55.5 mm wide metal/plastic step-shape housing, universal 85–264VAC input, 80% typical efficiency, and includes an FG/PE terminal for protective earth connection.

What is the input voltage range of the DR-75-24?

The DR-75-24 supports a universal AC input range of 85–264VAC (single phase) or 120–370VDC.

Is the DR-75-24 Class II or General Type?

The DR-75-24 is a General Type model. Unlike the Class II DR-15/30/60/100, it provides an FG (Frame Ground) terminal at TB1 Pin 1 and must be connected to PE (Protective Earth) for safety and EMC performance.

What is the output voltage adjustment range of the DR-75-24?

The DR-75-24 has a 21.6–28.8V output adjustment range via the front-panel +V ADJ potentiometer (±10% of 24V). This is sufficient for voltage-drop compensation without exceeding the tolerance of most 24V devices.

What is the over-voltage protection threshold of the DR-75-24?

The DR-75-24 triggers over-voltage protection at approximately 28.8–33.6V (120–140% of 24V). The output shuts down and requires re-powering to recover.

What is the overload protection behavior of the DR-75-24?

The DR-75-24 uses 105–150% rated output power protection with constant current limiting. The unit recovers automatically after the fault condition is removed.

What is the ripple and noise of the DR-75-24?

The maximum ripple and noise is 150mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor.

What are the dimensions and weight of the DR-75-24?

The DR-75-24 measures 55.5 × 125.2 × 100 mm (W × H × D). The 55.5 mm width is the narrowest among General Type models (DR-45 = 93 mm, DR-120 = 63 mm).

What is the terminal pin assignment of the DR-75-24?

TB1 (Input): Pin 1 = FG, Pin 2 = AC/N or DC+, Pin 3 = AC/L or DC-. TB2 (Output): Pins 1, 2 = DC OUTPUT +V, Pins 3, 4 = DC OUTPUT -V. Note that +V comes before -V on TB2 — this is opposite to the DR-45 (where -V comes first). Verify terminal labels before wiring.

What is the no-load power consumption of the DR-75-24?

No-load power consumption is below 0.5W for the DR-75-24, supporting energy-efficient standby operation.

What is the operating temperature range of the DR-75-24?

The DR-75-24 operates from −20°C to +60°C with free air convection cooling. Full load operation is specified up to +40°C ambient; derating is required above +40°C according to the derating curve.

Does the DR-75-24 require a protective earth connection?

Yes. As a General Type model, the DR-75-24 includes an FG (Frame Ground) terminal at TB1 Pin 1 and must be connected to PE (Protective Earth) for safety and proper EMC performance.

What certifications does the DR-75-24 have?

The DR-75-24 is certified to UL508 and TUV EN60950-1. It complies with EN61000-6-2 industrial immunity, EN55022 Class B EMC emission and EN61000-3-2 harmonic current standards.

How does the DR-75-24 differ from the DR-60-24?

The DR-75-24 increases output current to 3.2A (76.8W vs 60W) while narrowing the housing from 78 mm to 55.5 mm. It is a General Type model with an FG/PE terminal (DR-60-24 is Class II). TB2 order also differs — +V comes before -V on the DR-75-24. Choose DR-75-24 when the 24V load exceeds 2.5A but stays within 3.2A.

Can the DR-75-24 power a 24V relay bank and several sensors?

Yes, if the combined steady-state current stays within 3.2A (76.8W). Relay pull-in current can be higher than holding current, so add the worst-case relay load to the sensor draw and verify the total before connecting. If the combined load approaches 3.2A, step up to the DR-120-24 (5A).

What is the DAPPRA DR-75-24?

The DAPPRA DR-75-24 (SKU: PM25) is a 76.8W single-output DIN rail power supply providing 24V DC at 3.2A. It is a General Type model with a 55.5 mm wide metal/plastic step-shape housing, universal 85–264VAC input, 80% typical efficiency, and includes an FG/PE terminal for protective earth connection.

What is the input voltage range of the DR-75-24?

The DR-75-24 supports a universal AC input range of 85–264VAC (single phase) or 120–370VDC.

Is the DR-75-24 Class II or General Type?

The DR-75-24 is a General Type model. Unlike the Class II DR-15/30/60/100, it provides an FG (Frame Ground) terminal at TB1 Pin 1 and must be connected to PE (Protective Earth) for safety and EMC performance.

What is the output voltage adjustment range of the DR-75-24?

The DR-75-24 has a 21.6–28.8V output adjustment range via the front-panel +V ADJ potentiometer (±10% of 24V). This is sufficient for voltage-drop compensation without exceeding the tolerance of most 24V devices.

What is the over-voltage protection threshold of the DR-75-24?

The DR-75-24 triggers over-voltage protection at approximately 28.8–33.6V (120–140% of 24V). The output shuts down and requires re-powering to recover.

What is the overload protection behavior of the DR-75-24?

The DR-75-24 uses 105–150% rated output power protection with constant current limiting. The unit recovers automatically after the fault condition is removed.

What is the ripple and noise of the DR-75-24?

The maximum ripple and noise is 150mVp-p, measured at 20MHz bandwidth with a 0.1μF and 47μF parallel capacitor.

What are the dimensions and weight of the DR-75-24?

The DR-75-24 measures 55.5 × 125.2 × 100 mm (W × H × D). The 55.5 mm width is the narrowest among General Type models (DR-45 = 93 mm, DR-120 = 63 mm).

What is the terminal pin assignment of the DR-75-24?

TB1 (Input): Pin 1 = FG, Pin 2 = AC/N or DC+, Pin 3 = AC/L or DC-. TB2 (Output): Pins 1, 2 = DC OUTPUT +V, Pins 3, 4 = DC OUTPUT -V. Note that +V comes before -V on TB2 — this is opposite to the DR-45 (where -V comes first). Verify terminal labels before wiring.

What is the no-load power consumption of the DR-75-24?

No-load power consumption is below 0.5W for the DR-75-24, supporting energy-efficient standby operation.

What is the operating temperature range of the DR-75-24?

The DR-75-24 operates from −20°C to +60°C with free air convection cooling. Full load operation is specified up to +40°C ambient; derating is required above +40°C according to the derating curve.

Does the DR-75-24 require a protective earth connection?

Yes. As a General Type model, the DR-75-24 includes an FG (Frame Ground) terminal at TB1 Pin 1 and must be connected to PE (Protective Earth) for safety and proper EMC performance.

What certifications does the DR-75-24 have?

The DR-75-24 is certified to UL508 and TUV EN60950-1. It complies with EN61000-6-2 industrial immunity, EN55022 Class B EMC emission and EN61000-3-2 harmonic current standards.

How does the DR-75-24 differ from the DR-60-24?

The DR-75-24 increases output current to 3.2A (76.8W vs 60W) while narrowing the housing from 78 mm to 55.5 mm. It is a General Type model with an FG/PE terminal (DR-60-24 is Class II). TB2 order also differs — +V comes before -V on the DR-75-24. Choose DR-75-24 when the 24V load exceeds 2.5A but stays within 3.2A.

Can the DR-75-24 power a 24V relay bank and several sensors?

Yes, if the combined steady-state current stays within 3.2A (76.8W). Relay pull-in current can be higher than holding current, so add the worst-case relay load to the sensor draw and verify the total before connecting. If the combined load approaches 3.2A, step up to the DR-120-24 (5A).

Belanja minimal Rp 500.000, Gratis Ongkir!

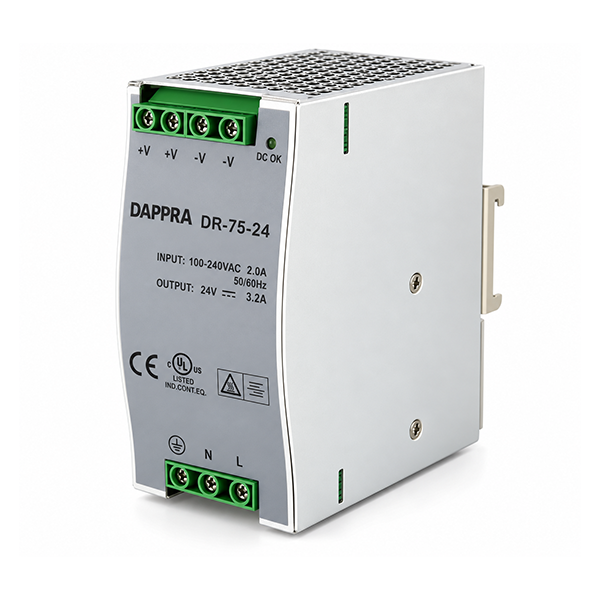

DR-75-24 76.8W 24V 3.2A Industrial DIN Rail Power Supply

Name: DR-75-24 76.8W 24V DIN Rail Power Supply | DAPPRA
Brand: DAPPRA
SKU: PM25
Price: 415000.00 IDR
Availability: InStock
Rating: 5.00 (2 reviews)

Peringkat 5.00 dari 5 berdasarkan 2 penilaian pelanggan

(2 ulasan pelanggan)

Rp415,000.00

VOUCHER

Diskon 5% min. belanja Rp1JT

Kode: svn56nm9 ·

Kategori: Industrial Control Components, Industrial Power Supply Brand DAPPRA SKU: PM25

🔥 10 items sold in last 3 jam

61 orang sedang melihat produk ini sekarang

Tanya dulu via WhatsApp

DAPPRA DR-75-24 (SKU: PM25) is a 75W single output classic step-shape industrial DIN rail power supply with 24V DC / 3.2A output. General Type with FG/PE terminal, slim 55.5 mm housing, fanless natural convection cooling, TS35 DIN rail mounting — ideal for general industrial control.

24V / 3.2A

Output

76.8 W

Rated Power

85–264 VAC

Universal Input

80%

Efficiency

55.5 mm

Slim Width

General

Type (with PE)

Tambahkan ke Wishlist

Overview

DR-75-24 Overview

The DAPPRA DR-75-24 (SKU: PM25) is a 76.8W single-output DIN rail power supply in the DR Series, positioned as a General Type model with a protective earth terminal. It provides a stable 24V DC output at 3.2A from a universal 85–264 VAC input or 120–370 VDC input, with 80% typical efficiency and a ±10% output adjustment range of 21.6–28.8V.

At 55.5 mm wide, the DR-75-24 is the narrowest General Type model in the DR Series — narrower than both the DR-45 (93 mm) and the DR-120 (63 mm). Unlike the Class II DR-15/30/60/100, it includes an FG (Frame Ground) terminal at TB1 Pin 1 that must be connected to PE (Protective Earth). The TB2 output order is +V first (pins 1,2) and -V second (pins 3,4) — opposite to the DR-45. Protection includes short circuit, overload (105–150% constant current limiting, auto-recovery) and over-voltage (28.8–33.6V, shut-down and re-power).

Key Features

DR-75-24 Key Features

Engineered for 24V loads up to 3.2A in General Type industrial control cabinets with protective earth.

76.8W Output · 24V / 3.2A24V DC at 3.2A (0–3.2A), 76.8W. +V ADJ 21.6–28.8V.
General Type with FG/PE TerminalTB1 Pin 1 = FG. Must be connected to PE (Protective Earth) for safety and EMC.
Universal AC Input 85–264VACFull-range single-phase input; also 120–370 VDC.
80% Typical EfficiencyReduces energy consumption and heat generation.
Narrow 55.5 mm Step-Shape Housing55.5 × 125.2 × 100 mm — narrowest General Type model.
Fanless Natural Convection CoolingNo dust intake, no acoustic noise.
Overload 105–150%Constant current limiting, auto-recovery.
No-Load <0.5WEnergy-efficient standby.
TS35 DIN Rail · UL508 · 3-Year WarrantyStandard TS35/7.5 or TS35/15 rail.

Specifications

DR-75-24 Specifications

Output

DC Voltage	24V
Rated Current	3.2A
Current Range	0–3.2A
Rated Power	76.8W
Ripple	150mVp-p
Adjustment	21.6–28.8V
Tolerance	±1.0%

Input

Voltage	85–264VAC · 120–370VDC
Efficiency	80%
No-Load	<0.5W
AC Current (Typ.)	1.8A/115VAC · 1.1A/230VAC

Protection

Overload	105–150% · Constant current limiting · Auto-recovery
Over Voltage	28.8–33.6V · Shut down, re-power to recover
Short Circuit	Protected

Environment

Working Temperature	−20 ~ +60°C (Derating above +40°C)
Working Humidity	20–90% RH non-condensing
Storage Temp., Humidity	−40 ~ +85°C, 10–95% RH
Vibration	10–500Hz, 2G 10min./1cycle, 60min. each axis

Safety & EMC

Safety Standards	UL508, TUV EN60950-1
Withstand Voltage	I/P-O/P: 3KVAC
Isolation Type	General Type with FG/PE terminal
EMC Emission	EN55022 Class B
EMC Immunity	EN61000-6-2 industrial immunity

Reliability & Dimensions

Dimensions (W×H×D)	55.5 × 125.2 × 100 mm
Weight	Approx. 0.55 kg
Housing	Metal / Plastic, step-shape
Warranty	3 Years

Front Panel

+V ADJ	Output voltage adjustment potentiometer (21.6–28.8V)
LED	Power-on indicator
FG	TB1 Pin 1 — must be connected to PE

Notes 24V / 3.2A / 76.8W, General Type with FG/PE terminal. TB2 order: +V (1,2), -V (3,4). Ripple 150mVp-p. Efficiency 80%. Derating above +40°C.

Dimensions

DR-75-24 Dimensions

Narrow 55.5 mm step-shape housing, 125.2 mm height. All dimensions in mm, tolerance ±1 mm.

Mechanical

Width (W)	55.5 mm
Height (H)	125.2 mm
Depth (D)	100 mm
Weight	Approx. 0.55 kg
Housing	Metal / Plastic, step-shape

Clearances

Top/Bottom	40 / 20 mm
Sides	5 mm
DIN Rail	TS35/7.5 or 15
Adjacent Heat Source	100–150 mm recommended

Installation

DR-75-24 Installation

01 / 06

Mounting Orientation

Input terminals at the bottom, output at the top.

02 / 06

Ventilation Clearance

5 mm sides, 40 mm top, 20 mm bottom. 100–150 mm from heat sources.

03 / 06

TS35 Rail

TS35/7.5 or 15. Tilt, fit, slide, lock, check.

04 / 06

FG to PE Required

General Type model — TB1 Pin 1 (FG) must be connected to PE.

05 / 06

Temperature

−20 to +60°C, full load up to +40°C, derate above +40°C.

06 / 06

Pollution Degree 2

Dry, ventilated control cabinet.

Wiring

DR-75-24 Wiring

TB1 — Input

Pin	Assignment
1	FG (must connect to PE)
2	AC/N or DC+
3	AC/L or DC-

TB2 — Output

Pin	Assignment
1, 2	DC OUTPUT +V
3, 4	DC OUTPUT -V

FG (Pin 1) must be connected to PE (Protective Earth). TB2 order is +V first, then -V — opposite to DR-45. Verify terminal labels before wiring.

DC Output Voltage Adjustment The DR-75-24 includes a front-panel +V ADJ potentiometer with a 21.6–28.8V range. Output current and wattage must not exceed the rated 3.2A / 76.8W.

Safety

DR-75-24 Safety & Cautions

Qualified technician only.
Do not connect primary and secondary.
Burn hazard.
Protect openings.
FG (TB1 Pin 1) must be connected to PE.
Do not exceed 3.2A / 76.8W.
Disconnect before maintenance.
Component for final equipment; re-confirm EMC.

Applications

DR-75-24 Industrial Applications

24V Relay Banks

24V Sensors

Industrial Control

Building Automation

Security Systems

Network Equipment

Machine Control

Process Control

Next Step

Need the DR-75-24?

Contact DAPPRA Automation — or explore the full DR Series.
