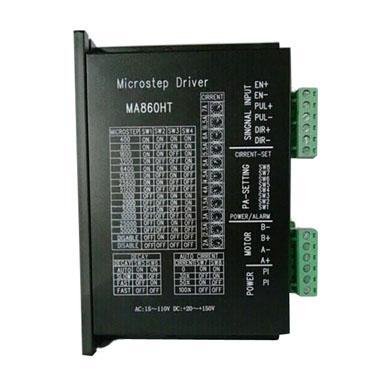

MA860HT 57 86 110 2-phase MicroStep stepper driver repalce MA860H AP55

MA860HT 57 86 110 MicroStep stepper driver 7A repalce MA860H AP55 Differences between MA860H drive and MA860HT: 1. wider supply voltage 15V-110V AC, 20V-150V DC. Leadshine is 18-90V AC. 24-130V DC. 2. Current gear set 11 of a wider profile. Also infinitely adjustable. Leadshine is grade 8 profile. 3. Semi-automatic flow control function, motor lock more efforts into four types of optional, for the two kinds of Leadshine current options, 4. Increase the current control mode feature, vibration and noise can match different motors. Class race this function. 5. The material is more solid than Leadshine drive. See below for comparison: Note: The breakdown of the number of pulses, the housing dimensions, the external interface Leadshine is exactly the same. description: MA860H drive, the main driver of 57,86,110 type two-phase hybrid stepping motor. Its micro-step breakdown of the number of 16 species, the maximum number of steps to 51200Pulse / rev; its operating peak current range of 2A-7A, the output current total of 11 stalls, the current resolution of about 0.5A; with automatic half current, overvoltage , overcurrent protection functions. The drive for the AC-DC power supply, the proposed operating voltage range of 48VAC-100VAC, voltage does not exceed 110VAC, not less than 15VAC. Application: Suitable for a variety of large-scale automation equipment, such as: engraving machine, cutting machine, packaging machinery, electronic processing equipment, automatic assembly equipment. Users expect a small noise, high-speed device applications particularly good effect.
