42 57 Nema 17 Nema 23 TB6600 9-42VDC 4.0A Stepper Motor Driver KO60
Description:
The TB6600 Stepper Motor Driver is an easy-to-use professional stepper motor driver for two-phase stepper motors. Two-phase 4-wire, 6-wire, 8-wire motors can be connected. It supports speed and direction control. You can set its micro step and output current with 6 DIP switch. All signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. TB6600 stepper driver is ideal for Nema17 and smaller-size Nema23 stepper motors.
Feature:
Supports 7 selectable microstep resolutions including 1, 2/A, 2/B, 4, 8, 16, 32.
Support 8 kinds of peak current control including 0.7A, 1.2A, 1.7A, 2.2A, 2.7A, 2.9A, 3.2A and 4.0A.
Input voltage 9-42 VDC
The interfaces adopt high-speed optocoupler isolation
Large area heat sink
Anti-high-frequency interference ability
Input anti-reverse protection
Overheat, over current and short circuit protection
Controller’s control signals can be active in high or low electrical level. When the high electrical level is active (common cathode connection), all control negative signals will be connected together to GND. When the low electrical level is active (common anode connection), all control positive signals will be connected together to public port.
You can use 5 – 24 V signal of a controller, just make sure that the appropriate resistor is used:
Signal amplitude 5V:Without R
Signal amplitude 12V : 1kΩ
Signal amplitude 24V : 2kΩ

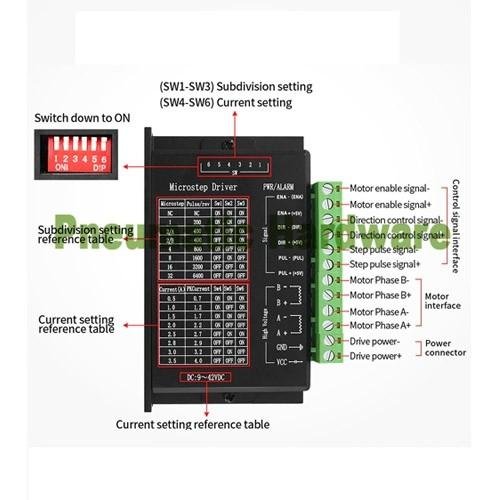

Motor and power supply interface details:
Motor pins A+ A- B+ B-
4 wires of a motor must be connected. In most situations those wires are color coded. Color associated with a winding depends on the motor. Please refer to the motor’s documentation for details.
Power supply pins:
DC+ DC- Power supply: 9-42 VDC
