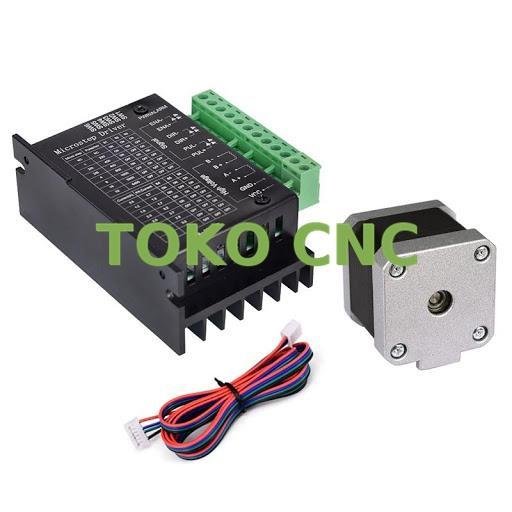

Kit 42 stepper motor nema 17 0.4 N.M + Driver TB6600 4A KB23
Rp520,000.00
Tanya dulu via WhatsApp
Kit 42 stepper motor nema 17 0.4N.M + Driver TB6600 4A KB23
SPEK:
42 stepper motor nema 17 0.4N.M
Stepper motor is a motor that moves in discrete steps, one step at a time. It is generally used in a variety of applications where precise position control is desirable such as 3D printer, laser cutter and pick & place machine.
1. Frame Size: 42 x 42mm (1.7 inch x 1.7 inch)
2. Body Length: 40mm
3. Shaft Diameter: 5mm
4. Number of Wire Leads: 4
5. Wire Length: 400mm
6. Step angle accuracy : ± 5%(full step,not load)
7. Resistance accuracy : ± 10%
8. Inductance accuracy : ± 20%
9. Temperature rise : 80deg Max (rated current,2 phase on)
10. Ambient temperature : -20deg ~ +50deg
11. Insulation resistance :100MΩ Min, 500VDC
12. Insultion Strength : 500VAC for one minute
13. Bipolar Nema 17 Stepper Motor with high torque
14. Each phase current is 1.7A (at 12V) & phase reslstance 1.5ohms, and the holding moment is 40Ncm (56.2oz.in).
15. This is the most popular Nema 17 model. It with 1.8 deg. step angle (200 steps/revolution).
16. NEMA 17 bipolar 4-wire, with 1.8° step angle (200 steps/revolution)
Arduino Wiring:
1. Red : A+
2. Green : A-
3. Yellow :B+
4. Blue : B-
Driver TB6600 Specifications
Operating voltage 9 – 42 V
Max output current 3.5 A per phase, 4.0 A peak
Microstep resolution full, 1/2, 1/4, 1/8 and 1/162
Protection Low-voltage shutdown, overheating and over-current protection
Dimensions 96 x 72 x 28/36 mm
Hole spacing 88, ⌀ 5 mm
