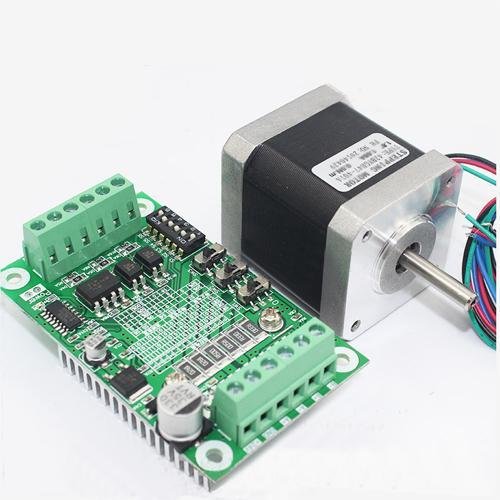

42 Stepper Motor NEMA 17 1.5A Torque 0.55Nm TB6560 Drive CNC KIT AH77

42 Stepper Motor NEMA 17 1.5A Torque 0.55Nm TB6560 Drive CNC KIT AH77

Microstepper driver
Motor type:42 Stepper Motor
Voltage:12V-24V
Current: 1.5A
Output torque: 0.55Nm (Nm)
Body length: 48mm
Shaft length: 21mm
The Shaft diameter:5mm
Shaft: single shaft
Outlet: two-phase four lead (blackColor A +Green A- Red B +Blue B-)
Shaft mode:Shaft 5 mm + single flat wire

TB6560 Drive:
– Working voltage: DC 10~35V, recommended using switch DC 24V power supply;
– Uses 6N137 high speed optocoupler, ensuring high speed never lost steps;
– Uses Toshiba TB6560AHQ brand new genuine chip, with low-voltage shutdown, over-temperature and over-current protection circuit parking, to ensure optimum performance;
– Rated maximum output is about 3A, peak value is 3.5A;
– Suitable 42, 57 3A stepper within two / four phase, four wire / six wire stepper motor, not suitable for more than 3A stepper motor;
– Automatic half current function; Segments: full step, half step, 1/8 step, 1/16 step, up to 16 segments
