DAPPRA M18 Inductive Proximity Sensor
Inductive proximity sensors are essential components in modern industrial automation. From CNC machines to packaging lines, a reliable proximity sensor ensures stable and accurate detection performance.
The DAPPRA M18 Inductive Proximity Sensor Series provides outstanding durability, precision, and compatibility for OEM manufacturers and system integrators.
⭐ Why Choose DAPPRA M18 Proximity Sensors?
✔ Premium durability thanks to nickel-plated brass housing.
✔ Multiple output types: NPN / PNP / SCR / 2-wire.
✔ IP67 waterproof for harsh industrial environments.
✔ Flush & Non-Flush options for flexible mounting.
✔ Pre-wired & M12 connector models available.
🔧 Product Features – M18 Inductive Proximity Sensor
- Operating distance: 5 mm (Flush) / 8 mm (Non-Flush)
- Nickel-plated brass housing
- Standard target: 18×18×1 mm A3 iron
- Output current: up to 150 mA
- NPN / PNP / SCR / 2-Wire output types
- Available in NO / NC / NO+NC
- Pre-wired or M12 connector models
- Low voltage drop & low power consumption
- Repeat accuracy: 0.02
- Response frequency: 200 Hz (DC) / 25 Hz (AC)
- Operating temperature: -25°C to +75°C
- IP67 protection
📘 Flush Type – 5 mm (Shielded)
| SKU | Output | Wiring | OMRON Part No. | Autonics Part No. |
|---|---|---|---|---|
| OB77 | NPN NO | Pre-wired | E2E-X10ME1 | PR18-5DN |
| OA56 (Enhanced EMI) | NPN NO | Pre-wired | E2E-X10ME1 | PR18-5DN |
| OA49 | NPN NC | Pre-wired | E2E-X10ME2 | PR18-5DN2 |
| OA58 | NPN NO+NC | Pre-wired | — | — |
| OB96 | PNP NO | Connector Type | E2E-X10MF1 | PR18-5DP |
| OA55 | PNP NO | Pre-wired | E2E-X10MF1 | PR18-5DP |
| OA53 | PNP NC | Pre-wired | E2E-X10MF2 | PR18-5DP2 |
| OA54 | PNP NO+NC | Pre-wired | — | — |
| OA51 | SCR NO | Pre-wired | E2E-X10MY1 | PR18-5AO |
| OA50 | SCR NC | Pre-wired | E2E-X10MY2 | PR18-5AC |
| OA57 | 2-wire DC NO | Pre-wired | — | — |
| OA52 | 2-wire DC NC | Pre-wired | — | — |
📗 Non-Flush Type – 8 mm (Non-Shielded)
| SKU | Output | Wiring | OMRON Part No. | Autonics Part No. |
|---|---|---|---|---|
| OD57 | NPN NO+NC | Pre-wired | — | — |
| OB79 | NPN NC | Pre-wired | E2E-X10E2 | PR18-8DN2 |
| OC01 | NPN NC | Connector Type | E2E-X10E2 | PR18-8DN2 |
| OB76 | PNP NO | Pre-wired | E2E-X10F1 | PR18-8DP |
| OB99 | PNP NO | Connector Type | E2E-X10F1 | PR18-8DP |
| OC82 | PNP NC | Pre-wired | E2E-X10F2 | PR18-8DP2 |
| OC02 | PNP NC | Connector Type | E2E-X10F2 | PR18-8DP2 |
| OD90 | SCR NO | Pre-wired | E2E-X10Y1 | PR18-8AO |
| OB31 | SCR NC | Pre-wired | E2E-X10Y2 | PR18-8AC |
| OD91 | 2-wire DC NO | Pre-wired | — | — |
| OD92 | 2-wire DC NC | Pre-wired | — | — |
📌 Comparison Table: SCR vs PNP vs NPN
| Jenis Output | Cocok Untuk | Tegangan | Karakteristik | Kelebihan | Kekurangan |
|---|---|---|---|---|---|
| SCR | Beban AC | AC 90–250V | Tipe NO | Mengendalikan beban AC | Tidak cocok sinyal cepat |
| PNP | Sistem modern | DC 10–30V | Output +V | Aman utk PLC modern | Tidak kompatibel input NPN |
| NPN | Mesin lama | DC 10–30V | Output 0V | Kompatibel luas | Tidak cocok PLC PNP-only |
📘 Wiring Diagram
Gunakan diagram wiring sesuai jenis output sensor: NPN, PNP, SCR, dan 2-wire.
🔩 Installation Requirements (M18 Sensor)
Jenis Pemasangan: Dapat dipasang secara flush maupun non-flush.
Material Housing: Kuningan berlapis nikel (nickel-plated brass).
Diameter Sensor: 12 mm (0.47 in).

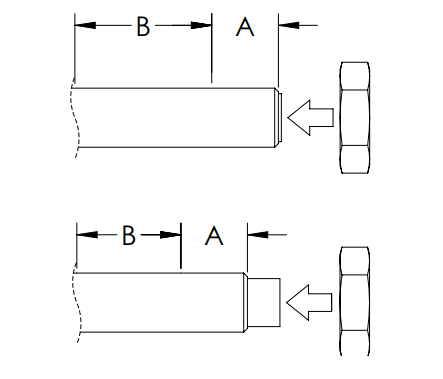

Torsi Pengencangan yang Direkomendasikan:
- Bagian B: 10 N·m (7.38 lb·ft)
- Bagian A: 6 N·m (4.43 lb·ft) — (A = 11 mm / 0.43 in)
📘 Flush Mounting
Model flush dapat dipasang dengan permukaan sensing yang rata dengan permukaan logam.
- Jarak dari permukaan logam berlawanan harus ≥ 3 × Sn
- Jarak antar dua sensor berdampingan harus ≥ 2 × D
Karena sensing face ditutup oleh housing metal, flush mounting bersifat lebih aman terhadap interferensi logam.

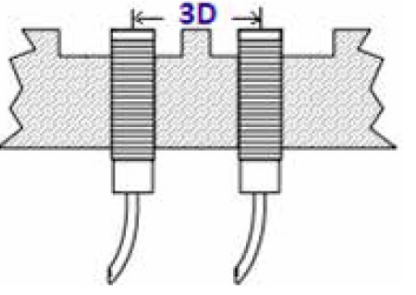

📗 Non-Flush Mounting
Model non-flush memiliki “cap” di ujung sensor dan tidak memiliki housing logam di sekitar permukaan sensing.
- Sensing face harus menonjol ≥ 2 × Sn
- Jarak ke permukaan logam berhadapan harus ≥ 3 × Sn
- Jarak antar dua sensor berdampingan harus ≥ 3 × D
Karena sensing face tidak terlindungi sepenuhnya, model non-flush memiliki jarak deteksi lebih jauh.
🛠 Accessories for 18mm Sensors

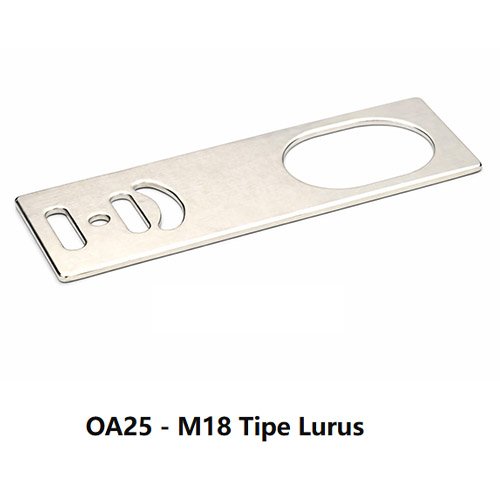

OA25 – Axial Mounting Bracket
Bracket mounting tipe aksial, tersedia dalam bahan baja lapis seng atau stainless steel 316L. Digunakan untuk sensor diameter 18mm. Memiliki dua lubang pemasangan (sekrup 3mm) dan memungkinkan rotasi sumbu optik, cocok untuk sensor dengan adaptor sudut kanan.
Description:
M18 Silinder Lurus Cylinder Bracket (OA25 – Straight Type). Sensor mounting plate for M18 proximity sensors.
Made of high-quality plated steel. Suitable for inductive & capacitive M18 sensors.
Drawing Link:
PDF
Weight: 0.03 lb (13.6 g)
OA26 – Right-Angle Mounting Bracket
Bracket pemasangan tipe sudut kanan, terbuat dari baja berlapis seng atau stainless steel 316L. Digunakan untuk sensor diameter 18mm. Memiliki dua lubang pemasangan (sekrup 3mm) dan memungkinkan rotasi sumbu optik. Sekrup hexagonal tidak termasuk.
Description:
M18 Silinder Lurus Cylinder Bracket (OA26 – M18 Right-Angle Bracket). Sensor mounting plate for M18 proximity sensors.
Made of high-quality plated steel. Suitable for inductive & capacitive M18 sensors.
Drawing Link:
PDF
Weight: 0.03 lb (13.6 g)
🚀 Application Areas
CNC Machinery
Digunakan untuk posisi referensi spindle, pemotongan presisi, dan deteksi metal.
Packaging Systems
Untuk mendeteksi posisi conveyor, gate stopper, dan kontrol mekanisme packaging.
Robotics
Digunakan untuk end-stroke robot arm, alignment, dan posisi gripper.
Elevators
Sensor lantai, posisi pintu, dan safety interlock elevator.
AGV / AMR
Posisi docking, pembacaan stasiun, dan deteksi jalur.
📩 Need Help Choosing a Model?
We provide free technical consultation, wiring assistance, and OEM customization for all DAPPRA proximity sensor models.
Contact DAPPRA for model selection, large-volume orders, or integration support.
