PL-05N PL 05N DC 10-30V 5mm NPN NO Proximity Sensor PU57
Rp30,000.00
VOUCHER
Diskon 5% min. belanja Rp1JT
🔥 14 items sold in last 3 jam
18 orang sedang melihat produk ini sekarang
Tanya dulu via WhatsApp
PL-05N PL 05N DC 10-30V 5mm NPN NO Proximity Sensor PU57
Description:
Inductive Proximity Sensor PL-05N NPN Limit Switch is used for controlling machinery as part of a control system, as a safety interlock, or to count objects passing a point. A limit switch is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection. Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed.
Limit switches are used in a variety of applications and environments because of their ruggedness, ease of installation, and reliability of operation. They can determine the presence or absence, passing, positioning, and end of travel of an object. They were first used to define the limit of travel of an object; hence the name “Limit Switch”.
Limit Switch devices are typically used with Laser Engraver or CNC based machines to sense the end of travel of an axis.
Typically used in CNC and Laser Engraving machines which uses a metal target to sense the end of travel on an axis.
Feature:
PL-05N
Brand: FOTEK
Square Type
Sensing distance: 5mm
Operating voltage: DC10-30V
Response frequency: 800Hz
Output method : NPN, 150mA load
Hysteresis: Protection degree: IP67
Working temperature/Hum : -20 ~+80C, 35%~90%RH
Body dimension : 30.5 x 17.9 x 10.2mm, LxWxH
Mounting Method: Flush
Sensing Direction: Horizontal
Material Housing: High-impact plastic
Screw hole : 3.2mm, Pitch : 10.5mm
Wire length : 100cm (39-inch)
Share:
Related Technical Articles
8 ulasan untuk PL-05N PL 05N DC 10-30V 5mm NPN NO Proximity Sensor PU57
Hanya pelanggan yang telah membeli produk ini dapat memberikan ulasan.
Mungkin Anda suka
Related Technical Articles
8 ulasan untuk PL-05N PL 05N DC 10-30V 5mm NPN NO Proximity Sensor PU57
-

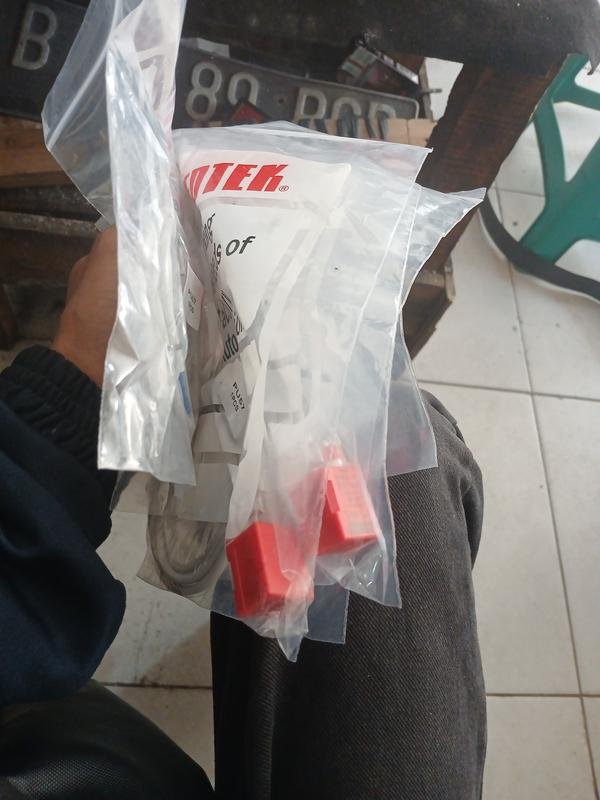

Sensor berfungsi Produk berfungsi dengan baik Packaging Bagus
-
