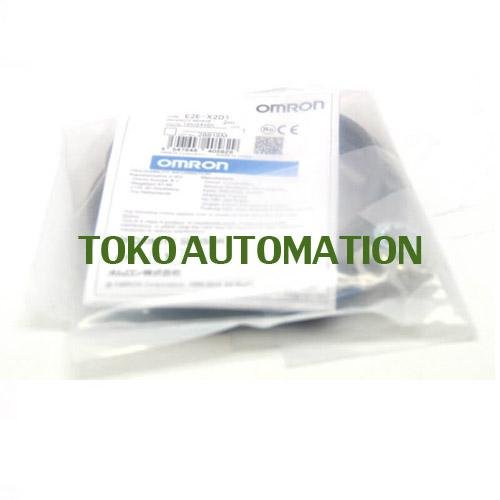

E2ER-X2D1 E2ER X2D1 M8 Inductive Oil-resistant Proximity Sensor PU80

E2ER-X2D1 E2ER X2D1 M8 Inductive Oil-resistant Proximity Sensor PU80

Description:
Inductive type, Shielded, Cylinder type (with screw) M8, DC 2-wire models, Sensing distance 2 mm ±10%, NO, Pre-wired models

Feature:
Sensing head size M8
Type Cylinder type (with screw), Inductive type, Shielded
Power source DC 2-wire models
Sensing distance 2 mm ±10%
Setting distance 0 to 1.6 mm
Differential distance 15% max. of sensing distance
Sensing object Ferrous metal (Sensitivity lowers with non-ferrous metals.)
Standard sensing object Iron 8 x 8 x 1 mm
Response frequency 1.5 kHz (Average value)
Power supply voltage 10 to 30 VDC ripple (p-p) 10% included
Leakage current 0.8 mA max.
Control output (Switching capacity) 3 to 100 mA
Control output (Residual voltage) 3 V max. (Load current 100 mA with cable length of 2 m)
Indicator Operation indicator (red), Operation setting indicator (green)
Operation mode NO
Protective circuit Output short-cut protection
Surge suppressor
