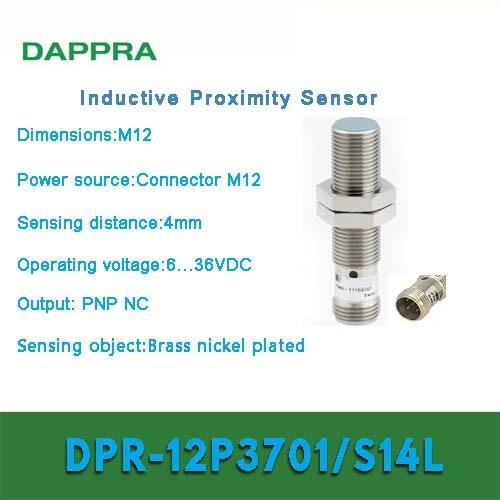

DPR 12P3701/S14L 12P3701 / S14L PNP NC Inductive proximity Sensor OB18

DPR 12P3701/S14L 12P3701 / S14L PNP NC Inductive proximity Sensor OB18

Feature:
Mounting type :Flush
Nominal sensing distance Sn:4 mm
Hysteresis 3 … 20 % of Sr
Output indicator 3 port LED red
Switching frequency:2 kHz
Voltage supply range +Vs:6 … 36 VDC
Current consumption max. (no load):10 mA
Output circuit:PNP break function (NC)
Voltage drop Vd :< 2 VDC
Output current:< 200 mA
Short circuit protection:Yes
Reverse polarity protection :Yes
Type:Cylindrical threaded
Material (sensing face):PBT
Housing material:Brass nickel plated
Dimension:12 mm
Housing length:50 mm
Connection types:Connector M12
Tightening torque max. :15 Nm (Front: 10 Nm)

Operating temperature :-25 … +75 °C
Protection class:IP 67
