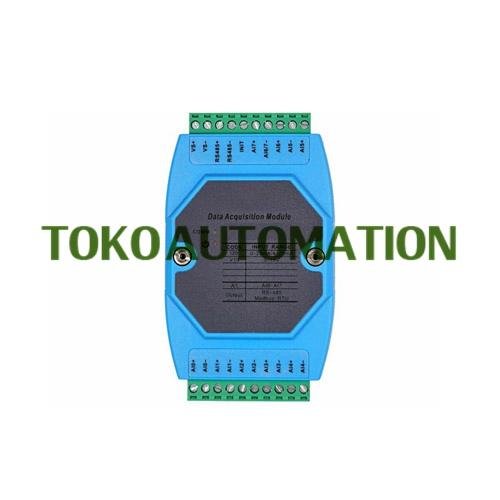

8 Channel 0 Ke 10V voltage analog signal data acquisition module SD02

8 Channel 0 Ke 10V voltage analog signal data acquisition module SD02

Description:
Modulenya is the 8 Channel 0-10V analog signal data acquisition module, which can be widely used in the industrial field device signal acquisition and monitoring. When the “C” in the model is I20, it is the input of the 0~20mA/4-20mA current. When “C” is V10, it is the voltage input of the 0-10V. Analog signal is a single ended input mode, the communication interface is RS-485 interface, supports standard MODBUS-RTU protocol, and can be connected to configuration software, PLC and DCS industrial touch screen.

Feature:
Analog signal input
1. Input channel: 8 Channel single end
2. Input range:C=V10: 0~10V voltage signal
3. ADC Resolution ratio: 16 Bit (valid-bit 15bit)
4. Conversion rate: 10 times per second (Full channel)
5. Precision: ±0.1%
6. Sampling resistance: 12R /0.1% (Current), 100K (Voltage)
Communication interface
1. Communication protocol: MODBUS-RTU
2. Interface type: RS-485 interface
3. Interface protection: 600W Surge, 15KV ESD, 1500V isolation protection
4. Baud rate: 1200/2400/4800/9600/19200/38400/57600/115200 bps
5. Parity：No, Even, Odd
6. Default: 9600, N, 8, 1 (modifiable)
System parameter
1. Module size: 104mm x 72mm x 26mm
2. Installation: 35mm din rail installation
3. Environment: temperature: -10~60 ℃ humidity: 0-95%, not condensing
4. Power supply: DC9~30V is less than 1W
