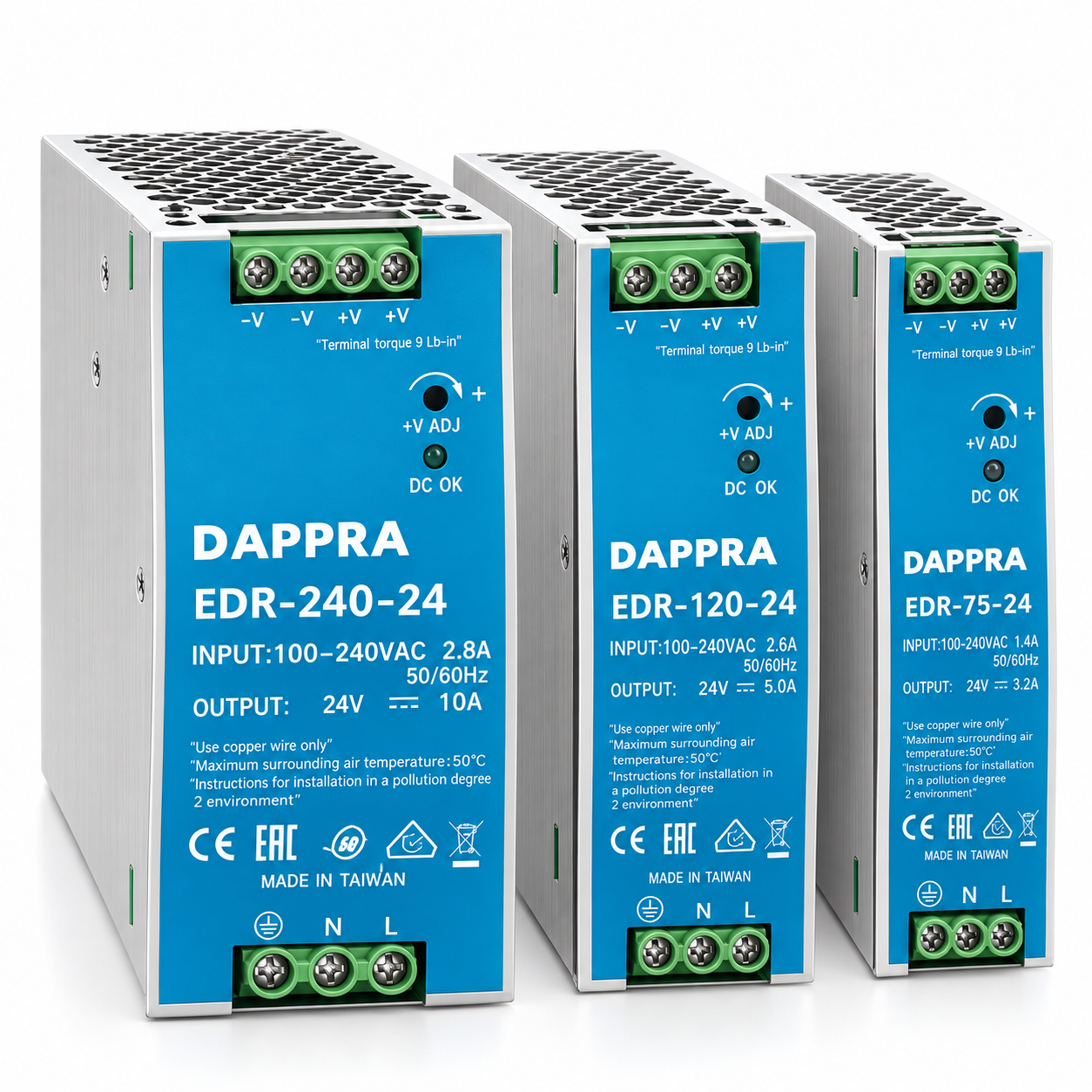

Industrial DIN Rail Power Supply – EDR Series
DAPPRA DIN Rail Industrial Power Supply
EDR Series — Economical Slim
DIN Rail Power Supply
The DAPPRA EDR Series is an economical slim metal-housing DIN rail power supply series designed for industrial control, factory automation and electromechanical applications.
With a narrow profile from just 32 mm, universal 90–264 VAC input and fanless natural convection cooling, the EDR Series delivers reliable single-output DC power in a space-saving package suitable for standard TS35/7.5 or TS35/15 DIN rail mounting.
75–150 W
Output Power
90–264 VAC
Universal AC Input
up to 88.5%
Efficiency
32–40 mm
Slim Housing Width
Overview
EDR Series Overview
The DAPPRA EDR Series is an economical slim metal-housing DIN rail power supply series designed for industrial control, factory automation and electromechanical applications. It is rated at 75W, 120W and 150W with single-output configurations of 12V, 24V and 48V DC.
The series features a universal AC input range of 90–264 VAC, fanless natural convection cooling and complete protection functions including short circuit, overload, over voltage and over temperature protection. All models are designed for standard TS35/7.5 or TS35/15 DIN rail mounting.
Key Features
EDR Series Key Features
Engineered for economical, space-saving industrial power supply applications.
- Universal AC Input 90–264 VACFull-range single-phase AC input supports global mains voltages without external selection switches. Also supports 120–370 VDC input.
- Slim Metal Housing from 32 mmEDR-75 is only 32 mm wide, while EDR-120 and EDR-150 are 40 mm wide — saving valuable space inside control cabinets.
- High Efficiency up to 88.5%EDR-75 and EDR-120 achieve up to 88.5% efficiency; EDR-150 achieves up to 87%, reducing energy consumption and heat generation.
- Fanless Natural Convection CoolingNo fan means no dust intake, no acoustic noise and no moving parts — ideal for dusty industrial environments and silent operation.
- Complete Protection FunctionsShort circuit protection, overload protection (constant current limiting), over voltage protection and over temperature protection are built in.
- TS35 DIN Rail MountingDesigned for standard TS35/7.5 or TS35/15 DIN rail mounting inside electrical panels, control cabinets and automation equipment.
Model Selection
EDR Series Model Selection
Select the appropriate EDR model according to the required output power, output voltage and current.
The EDR Series is available in three power ratings — 75W, 120W and 150W — with single-output configurations of 12V, 24V and 48V DC. The EDR-150 is available in 24V only.
Model Code
EDR
–
120
–
24
EDRSeries prefix — DAPPRA EDR Series Economical Slim DIN Rail Power Supply.
120 — Output PowerOutput power rating in Watts: 75 / 120 / 150.
24 — Output VoltageNominal output voltage in VDC: 12 / 24 / 48 (EDR-150: 24 only).
Field
Meaning
Available Values
EDR
Series prefix
EDR
Output Power
Rated output power in Watts
75 / 120 / 150
Output Voltage
Nominal DC output voltage
12 / 24 / 48 VDC
Example: EDR-120-24 = EDR Series, 120W output power, 24V DC output.
EDR Series Model List
| Model | Output Voltage | Output Current | Output Power | Width |
|---|---|---|---|---|
| EDR-75-12 | 12 VDC | 6.3 A | 75 W | 32 mm |
| EDR-75-24 | 24 VDC | 3.2 A | 75 W | 32 mm |
| EDR-75-48 | 48 VDC | 1.6 A | 75 W | 32 mm |
| EDR-120-12 | 12 VDC | 10 A | 120 W | 40 mm |
| EDR-120-24 | 24 VDC | 5 A | 120 W | 40 mm |
| EDR-120-48 | 48 VDC | 2.5 A | 120 W | 40 mm |
| EDR-150-24 | 24 VDC | 6.5 A (230VAC) / 5.2 A (115VAC) | 150 W | 40 mm |
Dimensions
EDR Series Dimensions
Slim metal housing with a compact footprint designed for space-constrained control cabinets. All dimensions in mm, tolerance ±1 mm.
EDR-75
| Width (W) | 32 mm |
| Depth (D) | 102 mm |
| Height (H) | 125.2 mm |
| DIN Rail Slot to Product Top Position (S) | 35 mm |
| Front Panel | DC OK indicator |
EDR-120
| Width (W) | 40 mm |
| Depth (D) | 113.5 mm |
| Height (H) | 125.2 mm |
| DIN Rail Slot to Product Top Position (S) | 35 mm |
| Front Panel | +V ADJ / DC OK |
EDR-150-24
| Width (W) | 40 mm |
| Depth (D) | 113.5 mm |
| Height (H) | 125.2 mm |
| DIN Rail Slot to Product Top Position (S) | 35 mm |
| Front Panel | +V ADJ / DC OK |
Installation
EDR Series Installation
The EDR Series supports DIN rail mounting with specific ventilation clearance and orientation requirements for reliable operation.
01 / 06
Vertical Orientation Only
The appropriate mounting orientation is vertical — input terminals at the bottom and output terminals at the top. Upside-down, horizontal or table-top mounting is not allowed, as sufficient cooling will not be possible.
02 / 06
Ventilation Clearance
Always allow good ventilation clearances around the unit: 5 mm left and right, 40 mm above and 20 mm below, to prevent overheating.
03 / 06
TS35 DIN Rail Mounting
Admissible DIN rail: TS35/7.5 or TS35/15. Tilt the unit slightly rearwards, fit over the top hat rail, slide it downward until it hits the stop, press against the bottom for locking, then shake slightly to check the locking action.
04 / 06
FG Must Be Connected to PE
The FG (Frame Ground) terminal must be connected to PE (Protective Earth) for safety and to ensure proper EMC performance.
05 / 06
Operating Temperature Limits
Maximum operating temperature is 45°C for EDR-75-12; 50°C for EDR-75-24/48, EDR-120-12/24/48 and EDR-150-24. Do not install in high ambient temperature locations or near fire sources.
06 / 06
Pollution Degree 2 Environment
Install the unit only in a pollution degree 2 environment — typically dry, well-ventilated locations such as control cabinets. Do not install in places with high moisture or near water.
The EDR Series operates with free air convection cooling and requires adequate ventilation clearance. Do not install in orientations other than vertical, such as upside down, horizontal or table-top mounting.
Wiring & Terminal
EDR Series Wiring & Terminal
The EDR Series uses two terminal blocks: TB1 for input and TB2 for output. Use copper wire only and ensure all strands of each stranded wire enter the terminal connection and the screw terminals are securely fixed to prevent poor contact.
Terminal Pin Assignment
TB1 — Input Terminal
| Pin No. | Assignment |
|---|---|
| 1 | FG (Frame Ground) |
| 2 | AC/N or DC- |
| 3 | AC/L or DC+ |
TB2 — Output Terminal
| Pin No. | Assignment |
|---|---|
| 1, 2 | DC OUTPUT -V |
| 3, 4 | DC OUTPUT +V |
The FG pin must be connected to PE (Protective Earth). Both -V pins (1, 2) and both +V pins (3, 4) should be connected to their respective output wires to prevent excessive current stress on a single contact.
Wiring Specification
Recommended Wire
| AWG | Rated Current | Cross-section |
|---|---|---|
| 18 | 7 A | 0.8 mm² |
| 16 | 10 A | 1.3 mm² |
| 14 | 15 A | 2.1 mm² |
| 12 | 20 A | 3.3 mm² |
Current each wire carries should be de-rated to 80% of the current suggested above when using 5 or more wires connected to the unit. Use wires that can withstand temperatures of at least 80°C, such as UL1007.
Terminal Torque Setting
| Model | I/P | O/P |
|---|---|---|
| EDR-75 | 6.9 kgf-cm (6 Lb-in) | 6.9 kgf-cm (6 Lb-in) |
| EDR-120 | 10.35 kgf-cm (9 Lb-in) | 10.35 kgf-cm (9 Lb-in) |
| EDR-150 | 6.3 kgf-cm (5.5 Lb-in) | 8 kgf-cm (7 Lb-in) |
Recommended wire strapping length: 5 mm (0.197″). Recommended screwdriver: 3 mm, slotted type.
Fuse & Circuit Breaker (230V)
| Model | Fuse | C16 | D16 |
|---|---|---|---|
| EDR-75 | T3.15A/L250V | 4 | 9 |
| EDR-120 | T4A/L250V | 5 | 9 |
| EDR-150 | T4A/L250V | 5 | 8 |
Maximum number of EDR PSUs that can be connected to a circuit breaker at 230V. For continued protection against risk of fire, replace only with the same type and rating of fuse.
DC Output Voltage Adjustment
All EDR models include a front-panel DC output voltage adjustment potentiometer (+V ADJ). The rated output voltage can be adjusted via the front-panel adjuster. EDR-120 and EDR-150 also include a DC OK indicator LED. Output current and output wattage must not exceed the rated value on its specification.
The actual wiring should follow the wiring diagram provided in the EDR Series installation manual. Use copper wire only and ensure all strands enter the terminal connection securely.
Safety & Compliance
EDR Series Safety & Cautions
Read and follow all safety instructions before installing, wiring, maintaining or modifying the EDR Series power supply.
- Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Do not remove the case of the power supply yourself.
- Connecting both the primary and the secondary sides together is not allowed — risk of electric arcs and electric shock (danger to life).
- Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection.
- Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
- The FG (Frame Ground) must be connected to PE (Protective Earth).
- Output current and output wattage must not exceed the rated value on its specification.
- Before commencing any installation, maintenance or modification work, disconnect the system from supply voltage. Make sure that inadvertent connection in circuit will be impossible.
- For continued protection against risk of fire, replace only with the same type and rating of fuse.
- For BSMI-certified models: flammability of V1 or above is required for surrounding equipment. Class A equipment should not be installed or used in a residential environment to avoid electromagnetic interference.
Note: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become conductive due to occasional condensation. Generally refers to dry, well-ventilated locations, such as control cabinets.
Applications
EDR Series Industrial Applications
The EDR Series is suitable for industrial control systems, factory automation equipment, electrical panels, semiconductor manufacturing equipment and electromechanical devices.
Industrial Control Systems
Factory Automation
Electrical Panels
Semiconductor Equipment
Electromechanical Devices
Machine Control
Building Automation
Process Control
Test & Measurement
Next Step
Explore the EDR Series
Browse all EDR Series DIN rail power supply products, or return to the Industrial Power Supply category page.
Support
EDR Series FAQ
What is the DAPPRA EDR Series?
The DAPPRA EDR Series is an economical slim metal-housing DIN rail power supply series designed for industrial control, factory automation and electromechanical applications. It is rated at 75W, 120W and 150W with 12V, 24V or 48V single output.
What is the input voltage range of the EDR Series?
The EDR Series supports a universal AC input range of 90–264 VAC (single phase) or 120–370 VDC.
What output voltages are available in the EDR Series?
The EDR-75 and EDR-120 offer 12V, 24V and 48V output options. The EDR-150 is available in 24V only.
What is the efficiency of the EDR Series?
The EDR Series achieves efficiency up to 88.5% for EDR-75 and EDR-120, and up to 87% for EDR-150.
What is the maximum operating temperature of the EDR Series?
The maximum operating temperature is 45°C for EDR-75-12 and 50°C for EDR-75-24/48, EDR-120-12/24/48 and EDR-150-24.
What is the terminal pin assignment of the EDR Series?
TB1 (Input): Pin 1 = FG, Pin 2 = AC/N or DC-, Pin 3 = AC/L or DC+. TB2 (Output): Pin 1,2 = DC OUTPUT -V; Pin 3,4 = DC OUTPUT +V.
Does the EDR Series support DC output voltage adjustment?
Yes. All EDR models include a front-panel DC output voltage adjustment potentiometer (+V ADJ). EDR-120 and EDR-150 also include a DC OK indicator LED.
What certifications does the EDR Series have?
The EDR Series is certified to UL508 (industrial control equipment) and complies with EN61000-6-2 industrial immunity level.
How do I choose the right EDR Series model?
Select the EDR model according to the required output power (75W, 120W or 150W), output voltage (12V, 24V or 48V) and available DIN rail mounting space in the control cabinet.
